Segment Thread Macro: Advanced CNC Swiss Machining Technique Guide

# Segment Thread Macro: Revolutionizing CNC Swiss Machining

In the world of precision manufacturing, efficiency and accuracy are paramount. Today, we’re diving into an innovative technique that’s transforming how machinists approach threading operations: the Segment Thread Macro.

## What is a Segment Thread Macro?

A segment thread macro is a specialized CNC programming technique that breaks down traditional threading operations into smaller, manageable segments. Instead of cutting a thread in one continuous pass, this macro divides the threading process into multiple segments, offering unprecedented control over the cutting process.

## Key Benefits of Segment Threading

### 1. **Reduced Tool Wear**
By segmenting the threading operation, cutting forces are distributed more evenly across the tool’s cutting edge. This results in:
– Extended tool life
– Consistent thread quality throughout production runs
– Reduced tooling costs

### 2. **Improved Chip Control**
One of the biggest challenges in threading, especially in Swiss machining, is chip evacuation. Segment threading:
– Breaks chips into smaller, more manageable pieces
– Prevents chip wrapping around the workpiece
– Reduces the risk of chip-related crashes

### 3. **Enhanced Surface Finish**
The segmented approach allows for:
– Better coolant penetration
– Reduced heat buildup
– More consistent thread profiles

## Implementation in Swiss Machining

Swiss-type lathes are particularly well-suited for segment thread macros due to their:
– High precision capabilities
– Superior support near the cutting zone
– Excellent chip evacuation systems

### Programming Considerations

When implementing a segment thread macro, consider these key parameters:

1. **Segment Length**: Typically 0.5 to 2 times the thread pitch
2. **Retract Distance**: Sufficient clearance for chip evacuation
3. **Feed Rate Optimization**: Adjusted for each segment based on material
4. **Coolant Strategy**: High-pressure coolant between segments

## Real-World Applications

Segment thread macros excel in:
– Deep hole threading
– Hard-to-machine materials (Inconel, titanium)
– High-precision medical components
– Aerospace fasteners
– Automotive fuel system components

## Best Practices for Success

1. **Start Conservative**: Begin with shorter segments and optimize from there
2. **Monitor Tool Wear**: Track tool life improvements compared to conventional threading
3. **Adjust for Material**: Different materials require different segment strategies
4. **Document Parameters**: Keep detailed records of successful macro parameters

## The Bottom Line

Segment thread macros represent a significant advancement in CNC machining technology. By breaking down complex threading operations into manageable segments, manufacturers can achieve:
– Higher quality threads
– Reduced production costs
– Increased machine uptime
– Greater process reliability

As the manufacturing industry continues to demand tighter tolerances and more challenging materials, techniques like segment thread macros will become increasingly valuable in the modern machine shop.

## Learn More

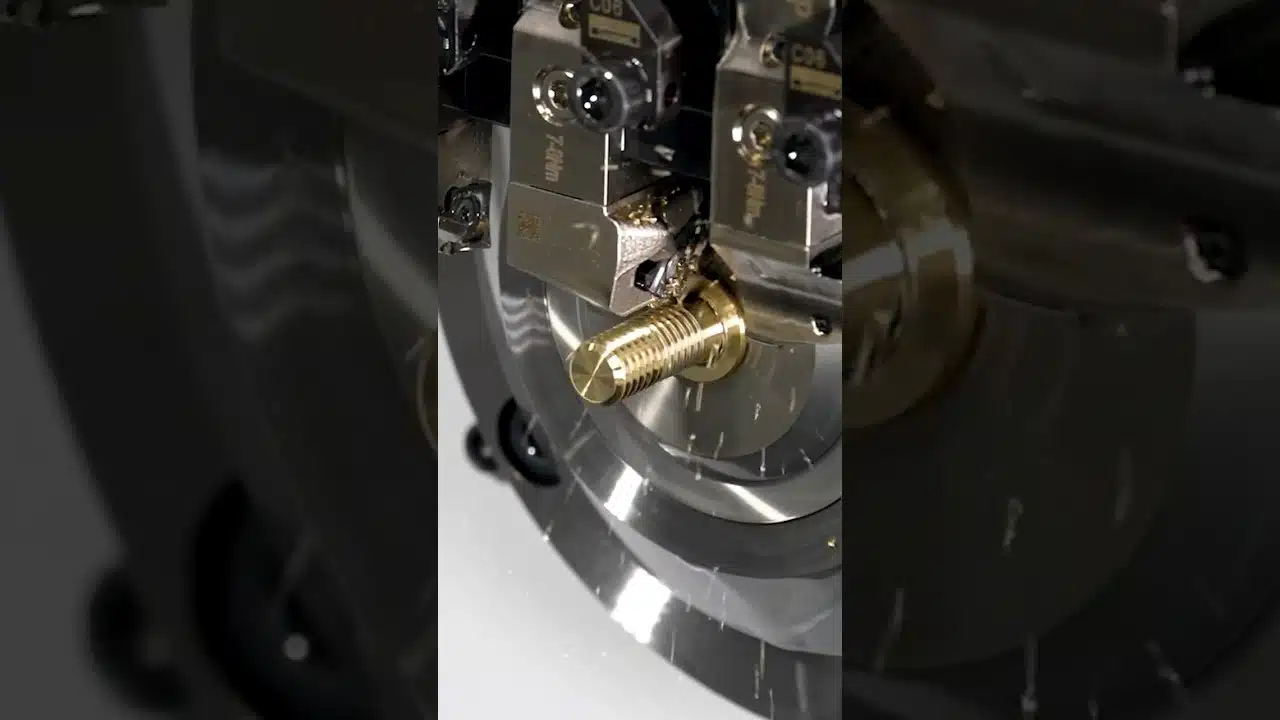

For a practical demonstration of segment thread macro implementation, check out Donnie Hinske’s video tutorial. His hands-on approach provides valuable insights into real-world application of this powerful technique.

Whether you’re a seasoned machinist or new to CNC programming, mastering segment thread macros can significantly enhance your threading capabilities and overall productivity.
