Schuster V Series

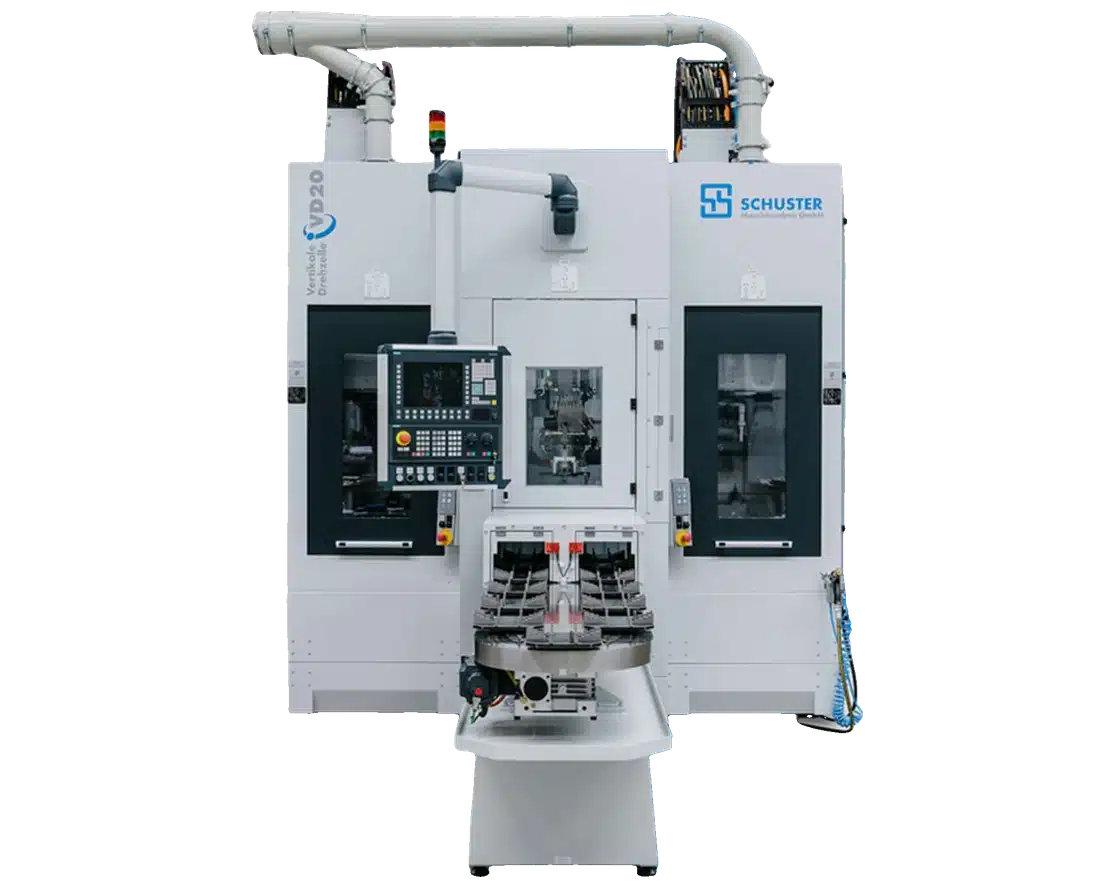

The Schuster V Series comprises compact vertical turning cells built from identical spindle modules. The VD20 pairs two modules with one fast NC handling gripper that loads, unloads and flips parts, running either twin machining or both sides of a part in one cell; the V20 trio adds a third module to balance uneven operations. These machines are ideal for industries such as automotive and medical technology, where rotationally symmetrical parts run in high volumes. Notable features include deburring, measuring or marking during machining time.
Key Features of the Schuster V Series:
Twin or two-sided machining.
Integrated NC handling gripper.
Balanced, even cycle times.
Compact mineral cast modules.
Compare the specifications of the different models available in the Schuster V Series. Values shown as On request are available from our team.
| Specifications | VD20 | V20 | V20 trio |
|---|---|---|---|
| Configuration | 2 spindles, 2 turrets | 1 spindle, 1 turret | 3 spindles, 3 turrets |
| Max. Chuck Size | 250 mm | 250 mm | 250 mm |
| Max. Part Diameter | 250 mm | 250 mm | 250 mm |
| Max. Dia. (2-Sided) | 150 mm | On request | On request |
| Max. Spindle Speed | 6,000 rpm (option 4,500) | 6,000 rpm (option 4,500) | 6,000 rpm (option 4,500) |
| Spindle Power | 26 kW S1 (option 28.3) | 26 kW S1 (option 28.3) | 26 kW S1 (option 28.3) |
| Spindle Torque | 150 Nm S1 (option 300) | 150 Nm S1 (option 300) | 150 Nm S1 (option 300) |
| Spindle Nose | A6 (DIN 55026) | A6 (DIN 55026) | A6 (DIN 55026) |
| C-Axis Accuracy | 10 arcsec | 10 arcsec | 10 arcsec |
| Tool Turret | 12 x VDI 40, 0.2 s index | 12 x VDI 40, 0.2 s index | 12 x VDI 40, 0.2 s index |
| Driven Tools | Option: 10,000 rpm | Option: 10,000 rpm | Option: 10,000 rpm |
| Direct Drive Turret | Available as option | Available as option | Available as option |
| Z Travel | 370 mm | 370 mm | 370 mm |
| Rapid Traverse Z | 50 m/min | 50 m/min | 50 m/min |
| Y-Axis Travel | Option: ±40 mm | Option: ±40 mm | Option: ±40 mm |
| Loading | Integrated NC gripper | On request | Integrated NC gripper |
| Size (W x D x H) | 2,650 x 2,800 x 2,900 mm | 1,800 x 2,800 x 2,900 mm | 4,450 x 2,800 x 2,900 mm |
| Control | Siemens 840D sl | Siemens 840D sl | Siemens 840D sl |
| Specifications | VD20 | V20 | V20 trio |
|---|---|---|---|
| Configuration | 2 spindles, 2 turrets | 1 spindle, 1 turret | 3 spindles, 3 turrets |
| Max. Chuck Size | 250 mm | 250 mm | 250 mm |
| Max. Part Diameter | 250 mm | 250 mm | 250 mm |
| Max. Dia. (2-Sided) | 150 mm | On request | On request |
| Max. Spindle Speed | 6,000 rpm (option 4,500) | 6,000 rpm (option 4,500) | 6,000 rpm (option 4,500) |
| Spindle Power | 26 kW S1 (option 28.3) | 26 kW S1 (option 28.3) | 26 kW S1 (option 28.3) |
| Spindle Torque | 150 Nm S1 (option 300) | 150 Nm S1 (option 300) | 150 Nm S1 (option 300) |
| Spindle Nose | A6 (DIN 55026) | A6 (DIN 55026) | A6 (DIN 55026) |
| C-Axis Accuracy | 10 arcsec | 10 arcsec | 10 arcsec |
| Tool Turret | 12 x VDI 40, 0.2 s index | 12 x VDI 40, 0.2 s index | 12 x VDI 40, 0.2 s index |
| Driven Tools | Option: 10,000 rpm | Option: 10,000 rpm | Option: 10,000 rpm |
| Direct Drive Turret | Available as option | Available as option | Available as option |
| Z Travel | 370 mm | 370 mm | 370 mm |
| Rapid Traverse Z | 50 m/min | 50 m/min | 50 m/min |
| Y-Axis Travel | Option: ±40 mm | Option: ±40 mm | Option: ±40 mm |
| Loading | Integrated NC gripper | On request | Integrated NC gripper |
| Size (W x D x H) | 2,650 x 2,800 x 2,900 mm | 1,800 x 2,800 x 2,900 mm | 4,450 x 2,800 x 2,900 mm |
| Control | Siemens 840D sl | Siemens 840D sl | Siemens 840D sl |
