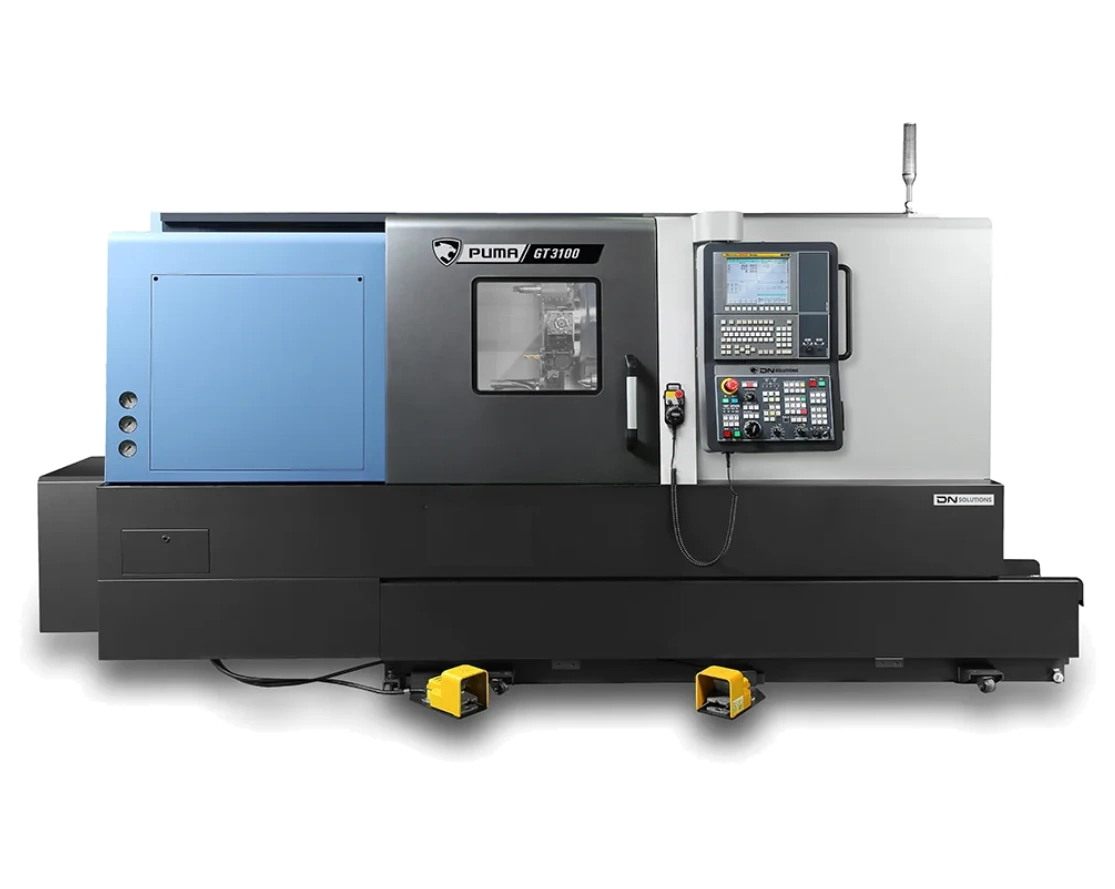

PUMA GT Series
The DN Solutions PUMA GT series comprises high-performance two-axis horizontal turning centers designed for efficient and precise machining of a wide range of parts. These lathes are ideally suited for applications in the automotive, aerospace, and energy sectors, where demanding tolerances and high production rates are required. Notable features often include rigid construction for enhanced stability, advanced CNC controls for precise operation, and tooling options for versatile machining capabilities.
Key Features of the PUMA GT Series:
High-speed, precise machining.
Rigid construction, durable design.
Excellent surface finishes.
User-friendly operation.
Compare the specifications of the different models available in the PUMA GT Series.
| Specifications | PUMA GT2600XLA | PUMA GT2600XLB | PUMA GT3100 | PUMA GT3100L |
|---|---|---|---|---|
| Chuck Size | 10 in | 12 in | 12 in | 12 in |
| Max. Turning Diameter | 460 mm | 460 mm | 481 mm | 481 mm |
| Max. Turning Length | 1603 mm | 1573 mm | 755 mm | 1275 mm |
| X-Axis Rapid Traverse | 24 m/min | 24 m/min | 24 m/min | 24 m/min |
| Z-Axis Rapid Traverse | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| X-Axis Travel Distance | 265 mm | 265 mm | 260 mm | 260 mm |
| Z-Axis Travel Distance | 1625 mm | 1625 mm | 830 mm | 1350 mm |
| Max. Spindle Speed | 3500 r/min | 2500 r/min | 2800 r/min | 2800 r/min |
| Max. Spindle Power | 26 kW | 26 kW | 35 kW | 35 kW |
| Max. Spindle Torque | 734 N . m | 990 N . m | 1613 N . m | 1613 N . m |
| No. of tool station | 10 ea | 12 ea | 10 ea | 10 ea |
| Length | 4855 mm | 4960 mm | 4068 mm | 4633 mm |
| Height | 2030 mm | 2030 mm | 1915 mm | 2110 mm |
| Width | 2198 mm | 2198 mm | 2102 mm | 2394 mm |
| Weight | 5900 kg | 6050 kg | 5500 kg | 6900 kg |
| Specifications | PUMA GT2600XLA | PUMA GT2600XLB | PUMA GT3100 | PUMA GT3100L |
|---|---|---|---|---|
| Chuck Size | 10 in | 12 in | 12 in | 12 in |
| Max. Turning Diameter | 460 mm | 460 mm | 481 mm | 481 mm |
| Max. Turning Length | 1603 mm | 1573 mm | 755 mm | 1275 mm |
| X-Axis Rapid Traverse | 24 m/min | 24 m/min | 24 m/min | 24 m/min |
| Z-Axis Rapid Traverse | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| X-Axis Travel Distance | 265 mm | 265 mm | 260 mm | 260 mm |
| Z-Axis Travel Distance | 1625 mm | 1625 mm | 830 mm | 1350 mm |
| Max. Spindle Speed | 3500 r/min | 2500 r/min | 2800 r/min | 2800 r/min |
| Max. Spindle Power | 26 kW | 26 kW | 35 kW | 35 kW |
| Max. Spindle Torque | 734 N . m | 990 N . m | 1613 N . m | 1613 N . m |
| No. of tool station | 10 ea | 12 ea | 10 ea | 10 ea |
| Length | 4855 mm | 4960 mm | 4068 mm | 4633 mm |
| Height | 2030 mm | 2030 mm | 1915 mm | 2110 mm |
| Width | 2198 mm | 2198 mm | 2102 mm | 2394 mm |
| Weight | 5900 kg | 6050 kg | 5500 kg | 6900 kg |
Access detailed specifications, features, and technical drawings for the PUMA GT Series. Please provide your name and email to receive the brochure(s) via email.
