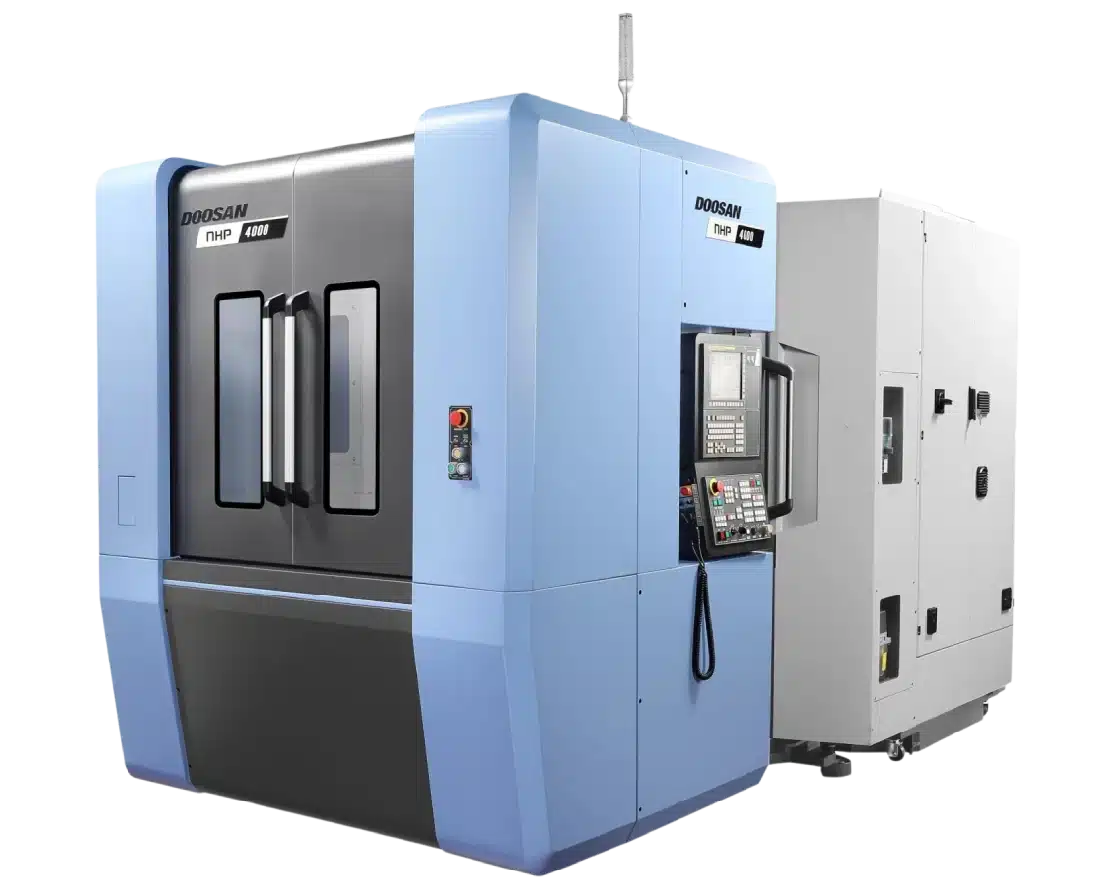

NHP Series
The DN Solutions NHP series represents a family of high-performance horizontal machining centers (HMCs) designed for heavy-duty applications. These machines are ideally suited for large-scale part machining in industries such as aerospace, energy, and automotive, where precise and efficient processing of complex components is critical. Notable features often include rigid construction, high-speed spindles, and advanced control systems for superior accuracy and productivity.
Key Features of the NHP Series:
High-speed, accurate machining.
Rigid construction, enhanced stability.
Durable, long-lasting components.
Efficient production, low downtime.
Compare the specifications of the different models available in the NHP Series.
| Specifications | NHP 4000 | NHP 5000 | NHP 5000 S | NHP 5500 | NHP 6300 | NHP 8000 |
|---|---|---|---|---|---|---|
| X-Axis Travel Distance | 560 mm | 730 mm | 730 mm | 800 mm | 1050 mm | 1400 mm |
| Y-Axis Travel Distance | 640 mm | 730 mm | 730 mm | 750 mm | 900 mm | 1200 mm |
| Z-Axis Travel Distance | 660 mm | 880 mm | 880 mm | 900 mm | 1000 mm | 1370 mm |
| X-Axis Rapid Traverse | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Y-Axis Rapid Traverse | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Z-Axis Rapid Traverse | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Max. Spindle Speed | 15000 r/min | 15000 {20000} r/min | 15000 {20000} r/min | 10000 {15000} r/min | 10000 {15000} r/min | 10000 {15000} r/min |
| Max. Spindle Power | 30/18.5 {37/22} kW | 30/18.5 {37/22} kW | 30/18.5 {37/22} kW | 37/26 kW | 30 kW | 45/25 {55/30} kW |
| Max. Spindle Torque | 230 {303} N . m | 230 {303} N . m | 229.9 {303} N . m | 516 {644} N . m | 600 {809} N . m | 600 {809} N . m |
| Tool Taper | ISO #40 | ISO #40 | ISO #40 | ISO #50 | ISO #50 | ISO #50 |
| Pallet Size | 400 mm | 500 x 500 mm | 500 x 600 mm | 500 x 500 mm | 630 x 630 mm | 800 mm |
| Maximum Workpiece weight | 400 kg | 500 kg | 500 kg | 800 kg | 1500 kg | 2000 kg |
| No. of tool station | 40 ea | 40 ea | 40 ea | 40 ea | 40 ea | 40 ea |
| Length | 4950 mm | 5450 mm | 4580 mm | 6389 mm | 6520 mm | 7878 mm |
| Height | 2690 mm | 2880 mm | 2930 mm | 3199 mm | 3495 mm | 3803 mm |
| Width | 2300 mm | 2680 mm | 2680 mm | 3375 mm | 3930 mm | 4375 mm |
| Weight | 9700 kg | 11500 kg | 11500 kg | 14000 kg | 18000 kg | 27000 kg |
| Specifications | NHP 4000 | NHP 5000 | NHP 5000 S | NHP 5500 | NHP 6300 | NHP 8000 |
|---|---|---|---|---|---|---|
| X-Axis Travel Distance | 560 mm | 730 mm | 730 mm | 800 mm | 1050 mm | 1400 mm |
| Y-Axis Travel Distance | 640 mm | 730 mm | 730 mm | 750 mm | 900 mm | 1200 mm |
| Z-Axis Travel Distance | 660 mm | 880 mm | 880 mm | 900 mm | 1000 mm | 1370 mm |
| X-Axis Rapid Traverse | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Y-Axis Rapid Traverse | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Z-Axis Rapid Traverse | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Max. Spindle Speed | 15000 r/min | 15000 {20000} r/min | 15000 {20000} r/min | 10000 {15000} r/min | 10000 {15000} r/min | 10000 {15000} r/min |
| Max. Spindle Power | 30/18.5 {37/22} kW | 30/18.5 {37/22} kW | 30/18.5 {37/22} kW | 37/26 kW | 30 kW | 45/25 {55/30} kW |
| Max. Spindle Torque | 230 {303} N . m | 230 {303} N . m | 229.9 {303} N . m | 516 {644} N . m | 600 {809} N . m | 600 {809} N . m |
| Tool Taper | ISO #40 | ISO #40 | ISO #40 | ISO #50 | ISO #50 | ISO #50 |
| Pallet Size | 400 mm | 500 x 500 mm | 500 x 600 mm | 500 x 500 mm | 630 x 630 mm | 800 mm |
| Maximum Workpiece weight | 400 kg | 500 kg | 500 kg | 800 kg | 1500 kg | 2000 kg |
| No. of tool station | 40 ea | 40 ea | 40 ea | 40 ea | 40 ea | 40 ea |
| Length | 4950 mm | 5450 mm | 4580 mm | 6389 mm | 6520 mm | 7878 mm |
| Height | 2690 mm | 2880 mm | 2930 mm | 3199 mm | 3495 mm | 3803 mm |
| Width | 2300 mm | 2680 mm | 2680 mm | 3375 mm | 3930 mm | 4375 mm |
| Weight | 9700 kg | 11500 kg | 11500 kg | 14000 kg | 18000 kg | 27000 kg |
Access detailed specifications, features, and technical drawings for the NHP Series. Please provide your name and email to receive the brochure(s) via email.
