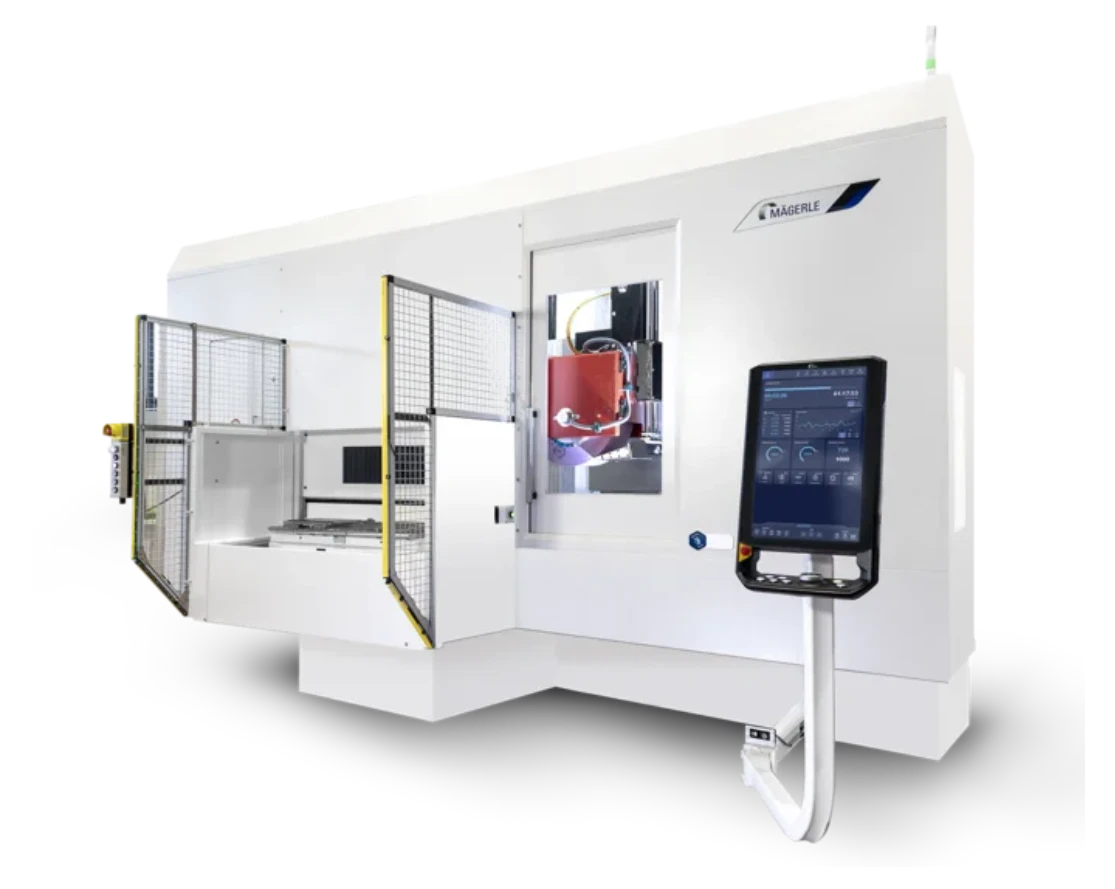

MGC Series
The MÄGERLE MGC series represents a line of high-precision creep feed grinding machines. These machines are ideally suited for applications requiring the removal of large amounts of material with exceptional surface finish quality, commonly found in the aerospace, automotive, and medical industries. Their robust design and advanced control systems ensure high accuracy, repeatability, and efficient processing, ultimately reducing production time and costs.
Key Features of the MGC Series:
Superior surface finishes.
High material removal rates.
Excellent process reliability.
Precise dimensional accuracy.
Compare the specifications of the different models available in the MGC Series.
| Specifications | MGC FT | MGC ST |
|---|---|---|
| Max. Travel X | 800 mm | 1300 mm |
| Max. Travel Speed X | 20000 mm/min | 20000 mm/min |
| Max. Travel Y | 900 mm | 650 mm |
| Max. Travel Speed Y | 20000 mm/min | 20000 mm/min |
| Max. Travel Z | 750 mm | 500 mm |
| Max. Travel Speed Z | 20000 mm/min | 20000 mm/min |
| Max. Spindle Power | 75 kW | 75 kW |
| Max. Number Of Revolutions | 8000 /min | 8000 /min |
| Max. Grinding Wheel Diameter | 500 mm | 500 mm |
| Max. Grinding Wheel Width | 240 mm | 240 mm |
| Table Sizes | 800 x 750 mm | 760 x 325 mm |
| Swiveling Range B | - | 180 ° |
| Specifications | MGC FT | MGC ST |
|---|---|---|
| Max. Travel X | 800 mm | 1300 mm |
| Max. Travel Speed X | 20000 mm/min | 20000 mm/min |
| Max. Travel Y | 900 mm | 650 mm |
| Max. Travel Speed Y | 20000 mm/min | 20000 mm/min |
| Max. Travel Z | 750 mm | 500 mm |
| Max. Travel Speed Z | 20000 mm/min | 20000 mm/min |
| Max. Spindle Power | 75 kW | 75 kW |
| Max. Number Of Revolutions | 8000 /min | 8000 /min |
| Max. Grinding Wheel Diameter | 500 mm | 500 mm |
| Max. Grinding Wheel Width | 240 mm | 240 mm |
| Table Sizes | 800 x 750 mm | 760 x 325 mm |
| Swiveling Range B | - | 180 ° |
