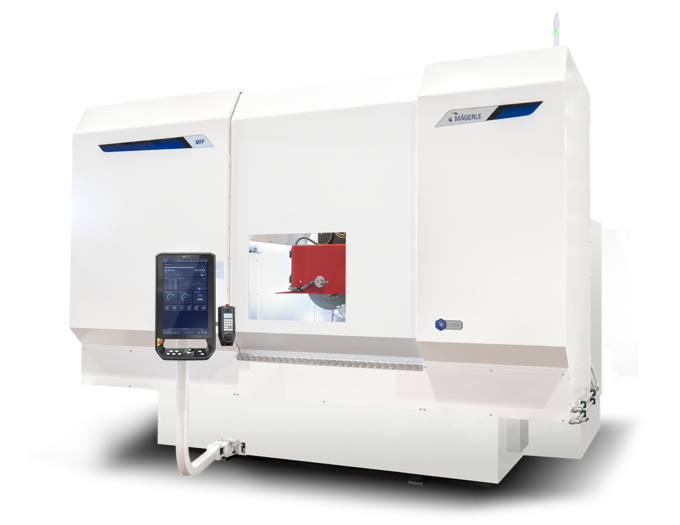

MFP Series
The MÄGERLE MFP series represents a line of high-precision creep feed grinding machines. These machines are ideally suited for applications requiring exceptional surface quality and dimensional accuracy, commonly found in the aerospace, medical, and tooling industries. Their robust construction and advanced control systems ensure efficient and reliable performance, even on the most demanding workpiece materials.
Key Features of the MFP Series:
High material removal rates.
Exceptional surface finishes.
Precise dimensional accuracy.
Robust, reliable performance.
Compare the specifications of the different models available in the MFP Series.
| Specifications | MFP |
|---|---|
| Max. Travel X | 500 mm |
| Max. Travel Speed X | 50000 mm/min |
| Max. Travel Y | 650 mm |
| Max. Travel Speed Y | 30000 mm/min |
| Max. Travel Z | 650 mm |
| Max. Travel Speed Z | 30000 mm/min |
| Max. Spindle Power | 50 kW |
| Max. Number Of Revolutions | 12000 /min |
| Max. Grinding Wheel Diameter | 300 mm |
| Max. Grinding Wheel Width | 60 mm |
| Swiveling Range A | 210 ° |
| Swiveling Range B | 360 ° |
| Swiveling Range C | 360 ° |
| Table Sizes | 500 x 650 mm |
| Specifications | MFP |
|---|---|
| Max. Travel X | 500 mm |
| Max. Travel Speed X | 50000 mm/min |
| Max. Travel Y | 650 mm |
| Max. Travel Speed Y | 30000 mm/min |
| Max. Travel Z | 650 mm |
| Max. Travel Speed Z | 30000 mm/min |
| Max. Spindle Power | 50 kW |
| Max. Number Of Revolutions | 12000 /min |
| Max. Grinding Wheel Diameter | 300 mm |
| Max. Grinding Wheel Width | 60 mm |
| Swiveling Range A | 210 ° |
| Swiveling Range B | 360 ° |
| Swiveling Range C | 360 ° |
| Table Sizes | 500 x 650 mm |
Access detailed specifications, features, and technical drawings for the MFP Series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the MFP Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
