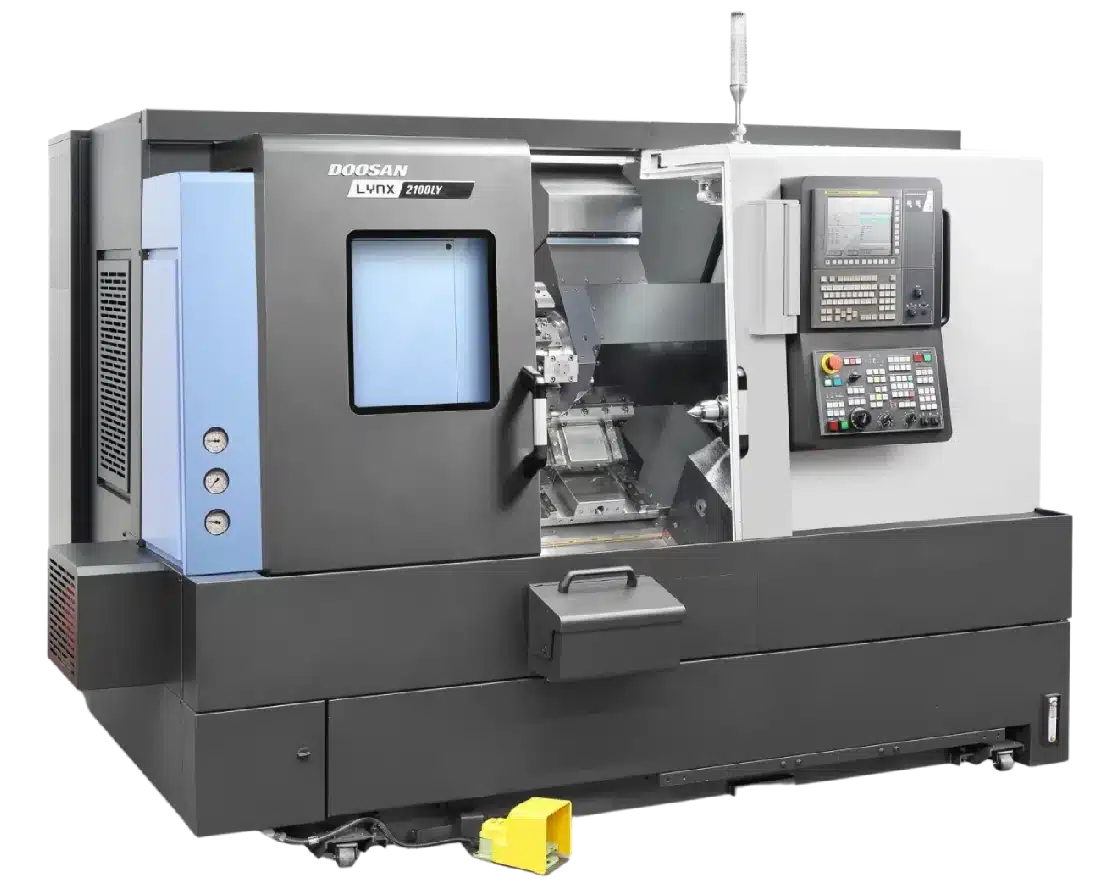

Lynx 2100/2600 Series
The DN Solutions Lynx 2100/2600 series are two-axis horizontal turning centers designed for high-volume production and efficient machining of various parts. These lathes are commonly used in automotive, aerospace, and general machining industries where precise and repeatable turning operations are required. Notable features may include rigid construction for high-speed machining, user-friendly controls, and options for automation to enhance productivity.
Key Features of the Lynx 2100/2600 Series:
High-precision part machining.
Robust and reliable design.
Efficient production processes.
Easy to operate and maintain.
Compare the specifications of the different models available in the Lynx 2100/2600 Series.
| Specifications | Lynx 2100A | Lynx 2100LA | Lynx 2100B | Lynx 2100LB | Lynx 2100LC | Lynx 2600 |
|---|---|---|---|---|---|---|
| Chuck Size | 6 in | 6 in | 8 in | 8 in | 10 in | 10 in |
| Max. Turning Diameter | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 460 mm |
| Max. Turning Length | 330 mm | 550 mm | 330 mm | 550 mm | 537 mm | 658 mm |
| X-Axis Rapid Traverse | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| Z-Axis Rapid Traverse | 36 m/min | 36 m/min | 36 m/min | 36 m/min | 36 m/min | 30 m/min |
| X-Axis Travel Distance | 205 mm | 205 mm | 205 mm | 205 mm | 205 mm | 255 mm |
| Z-Axis Travel Distance | 340 mm | 560 mm | 340 mm | 560 mm | 560 mm | 680 mm |
| Max. Spindle Speed | 6000 r/min | 6000 r/min | 4500 r/min | 4500 r/min | 3500 r/min | 3500 r/min |
| Max. Spindle Power | 15 kW | 15 kW | 15 kW | 15 kW | 18.5 kW | 18.5 kW |
| Max. Spindle Torque | 127 N . m | 127 N . m | 169 N . m | 169 N . m | 269 N . m | 403 N . m |
| No. of tool station | 12 ea | 12 ea | 12 ea | 12 ea | 10 ea | 10 ea |
| Length | 2320 mm | 2540 mm | 2350 mm | 2570 mm | 2570 mm | 3290 mm |
| Height | 1693 mm | 1693 mm | 1693 mm | 1693 mm | 1693 mm | 1790 mm |
| Width | 1595 mm | 1595 mm | 1595 mm | 1595 mm | 1602 mm | 1778 mm |
| Weight | 3100 kg | 3400 kg | 3100 kg | 3400 kg | 3450 kg | 4750 kg |
| Specifications | Lynx 2100A | Lynx 2100LA | Lynx 2100B | Lynx 2100LB | Lynx 2100LC | Lynx 2600 |
|---|---|---|---|---|---|---|
| Chuck Size | 6 in | 6 in | 8 in | 8 in | 10 in | 10 in |
| Max. Turning Diameter | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 460 mm |
| Max. Turning Length | 330 mm | 550 mm | 330 mm | 550 mm | 537 mm | 658 mm |
| X-Axis Rapid Traverse | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| Z-Axis Rapid Traverse | 36 m/min | 36 m/min | 36 m/min | 36 m/min | 36 m/min | 30 m/min |
| X-Axis Travel Distance | 205 mm | 205 mm | 205 mm | 205 mm | 205 mm | 255 mm |
| Z-Axis Travel Distance | 340 mm | 560 mm | 340 mm | 560 mm | 560 mm | 680 mm |
| Max. Spindle Speed | 6000 r/min | 6000 r/min | 4500 r/min | 4500 r/min | 3500 r/min | 3500 r/min |
| Max. Spindle Power | 15 kW | 15 kW | 15 kW | 15 kW | 18.5 kW | 18.5 kW |
| Max. Spindle Torque | 127 N . m | 127 N . m | 169 N . m | 169 N . m | 269 N . m | 403 N . m |
| No. of tool station | 12 ea | 12 ea | 12 ea | 12 ea | 10 ea | 10 ea |
| Length | 2320 mm | 2540 mm | 2350 mm | 2570 mm | 2570 mm | 3290 mm |
| Height | 1693 mm | 1693 mm | 1693 mm | 1693 mm | 1693 mm | 1790 mm |
| Width | 1595 mm | 1595 mm | 1595 mm | 1595 mm | 1602 mm | 1778 mm |
| Weight | 3100 kg | 3400 kg | 3100 kg | 3400 kg | 3450 kg | 4750 kg |
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the Lynx 2100/2600 Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
