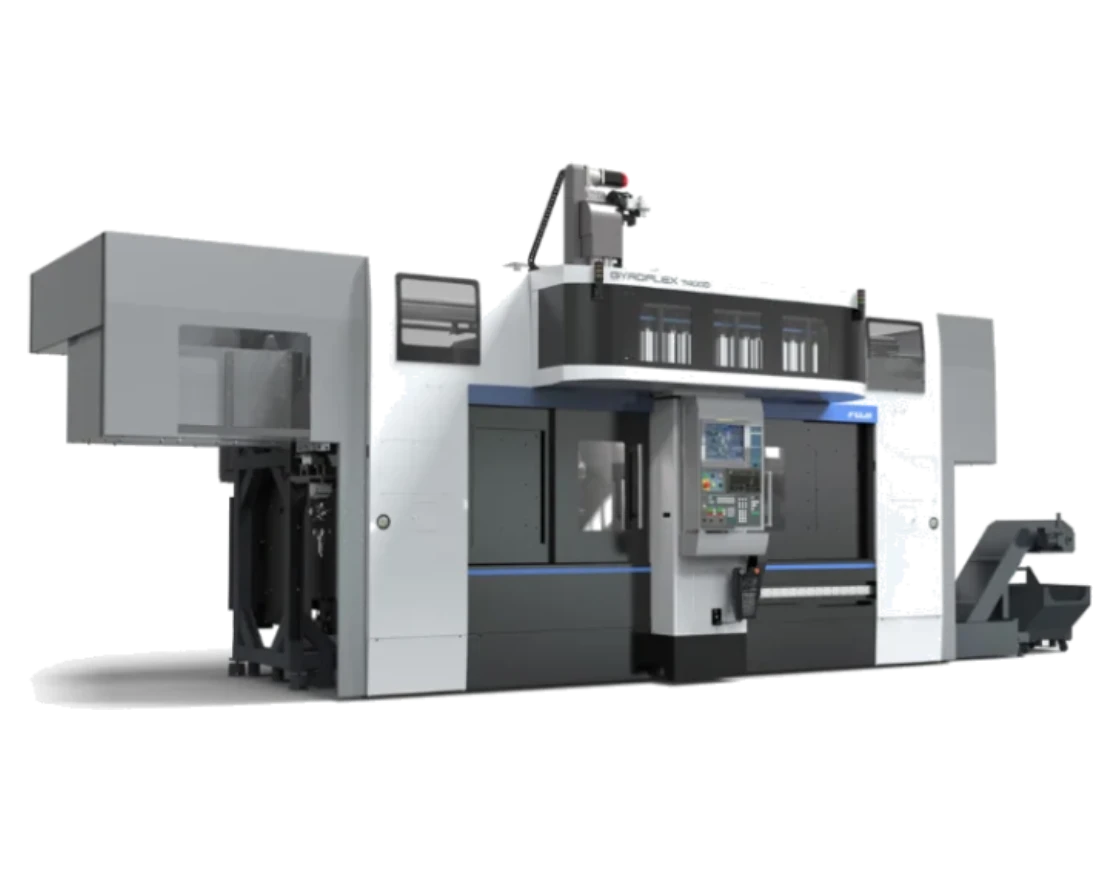

GYROFLEX
Fuji's GYROFLEX machine family encompasses high-performance horizontal and dual-spindle turning centers designed for demanding machining applications. These CNC turning centers are ideally suited for high-volume production runs in industries such as automotive, aerospace, and medical device manufacturing. Notable features often include rigid construction, advanced control systems, and high-speed spindle capabilities for exceptional accuracy and efficiency.
Key Features of the GYROFLEX:
High-speed, precise machining.
Dual spindles for efficiency.
Reduced cycle times.
Exceptional surface finish.
Compare the specifications of the different models available in the GYROFLEX.
| Specifications | GYROFLEX |
|---|---|
| Recommended Work Size - mm (inch) | ø300 x 150 (ø11.8 x 5.9) |
| Spindle Diameter - mm (inch) | ø120 (ø4.7) |
| Spindle Nose | A2-8 |
| Spindle Bore | ø67 (ø2.6) |
| Spindle Speed - rpm | Max. 4,000 |
| Spindle Motor - kW (hp) | 18.5/22 (25/30) |
| Number of Tool Stations | 15 + 15 |
| Slide stroke: Z-axis - mm (inch) | 960 (37.80) |
| Feed Motor: Z-axis - kW (hp) | 4.5 (6.0) |
| CNC Control | FANUC 31i-B Plus |
| Robot Fuji | LX-40 |
| Carrying capacity - kg (lbs) | 10 + 10 (22 + 22) |
| Footprint - mm (feet, inch) | 5000 x 3000 ( 16'5" x 9'10") |
| Machine Height - mm (feet, inch) | 3530 (11'7") |
| Specifications | GYROFLEX |
|---|---|
| Recommended Work Size - mm (inch) | ø300 x 150 (ø11.8 x 5.9) |
| Spindle Diameter - mm (inch) | ø120 (ø4.7) |
| Spindle Nose | A2-8 |
| Spindle Bore | ø67 (ø2.6) |
| Spindle Speed - rpm | Max. 4,000 |
| Spindle Motor - kW (hp) | 18.5/22 (25/30) |
| Number of Tool Stations | 15 + 15 |
| Slide stroke: Z-axis - mm (inch) | 960 (37.80) |
| Feed Motor: Z-axis - kW (hp) | 4.5 (6.0) |
| CNC Control | FANUC 31i-B Plus |
| Robot Fuji | LX-40 |
| Carrying capacity - kg (lbs) | 10 + 10 (22 + 22) |
| Footprint - mm (feet, inch) | 5000 x 3000 ( 16'5" x 9'10") |
| Machine Height - mm (feet, inch) | 3530 (11'7") |
Access detailed specifications, features, and technical drawings for the GYROFLEX. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the GYROFLEX, we’re here to help. Contact us today to find the perfect machining solution for your business.
