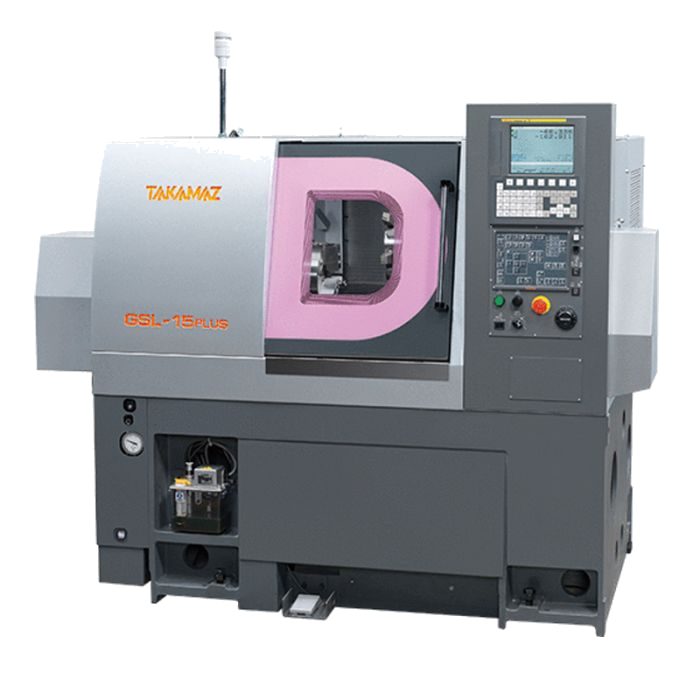

GSL Series
The Takamaz GSL Series comprises high-precision horizontal turning centers designed for efficient and versatile machining operations. These machines are ideally suited for high-volume production in industries such as automotive, aerospace, and general manufacturing. Notable features often include rigid construction for superior accuracy, advanced CNC controls for complex part programming, and robust tooling capabilities for diverse material handling.
Key Features of the GSL Series:
High-precision machining guaranteed.
Rigid structure, superior accuracy.
Enhanced productivity, reduced downtime.
User-friendly operation, ease of use.
Compare the specifications of the different models available in the GSL Series.
| Specifications | GSL‑15 PLUS |
|---|---|
| Chuck Size | Collet, 8 in. |
| Spindle bearing I.D. | φ100 |
| Spindle Speed | Max. 3500 min-1 |
| Type | 8-Station Turret |
| Max stroke | X:175 Z:330, X:160 Z:330 mm |
| Rapid Traverse Rate | X: 18, Z: 24 m/min |
| Spindle Motor | AC 7.5 / 5.5 |
| W x L | 1,875mm (With tailstock: 1,990mm) × 1,680mm |
| Controller | Takamaz & Fanuc 0i-TF |
| Specifications | GSL‑15 PLUS |
|---|---|
| Chuck Size | Collet, 8 in. |
| Spindle bearing I.D. | φ100 |
| Spindle Speed | Max. 3500 min-1 |
| Type | 8-Station Turret |
| Max stroke | X:175 Z:330, X:160 Z:330 mm |
| Rapid Traverse Rate | X: 18, Z: 24 m/min |
| Spindle Motor | AC 7.5 / 5.5 |
| W x L | 1,875mm (With tailstock: 1,990mm) × 1,680mm |
| Controller | Takamaz & Fanuc 0i-TF |
