Favorit

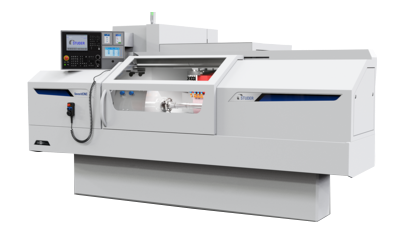

The STUDER favorit family comprises universal external cylindrical grinding machines designed for high-precision applications. These machines are ideally suited for a wide range of industries, including automotive, medical, and aerospace, where precise cylindrical grinding is critical. Their robust design, coupled with user-friendly controls, ensures efficient and accurate machining, resulting in superior surface finishes and dimensional accuracy.
Key Features of the Favorit:
High precision cylindrical grinding.
User-friendly operation.
Durable & reliable design.
Efficient production processes.
Compare the specifications of the different models available in the Favorit.
| Specifications | favoritCNC | favorit |
|---|---|---|
| Max. Travel X | 285 mm | 370 mm |
| Max. Travel Speed X | 10000 mm/min | 15000 mm/min |
| Max. Travel Z | 1150 mm | 1750 mm |
| Max. Travel Speed Z | 20000 mm/min | 20000 mm/min |
| Max. Spindle Power | 11.5 kW | 11.5 kW |
| Max. Grinding Wheel Diameter | 500 mm | 508 mm |
| Max. Grinding Wheel Width | 110 mm | 80 mm |
| Swiveling Range B | 210 ° | 255 ° |
| Swiveling Range C | ∞ ° | ∞ ° |
| Workpiece Length | 1000 mm | 1600 mm |
| Workpiece Diameter | 349 mm | 349 mm |
| Max. Workpiece Weight | 120 kg | 150 kg |
| Distance Between Centers | 1000 mm | 1600 mm |
| Center Height | 175 mm | 175 mm |
| Max. Number Of Revolutions | - | 3200 /min |
| Specifications | favoritCNC | favorit |
|---|---|---|
| Max. Travel X | 285 mm | 370 mm |
| Max. Travel Speed X | 10000 mm/min | 15000 mm/min |
| Max. Travel Z | 1150 mm | 1750 mm |
| Max. Travel Speed Z | 20000 mm/min | 20000 mm/min |
| Max. Spindle Power | 11.5 kW | 11.5 kW |
| Max. Grinding Wheel Diameter | 500 mm | 508 mm |
| Max. Grinding Wheel Width | 110 mm | 80 mm |
| Swiveling Range B | 210 ° | 255 ° |
| Swiveling Range C | ∞ ° | ∞ ° |
| Workpiece Length | 1000 mm | 1600 mm |
| Workpiece Diameter | 349 mm | 349 mm |
| Max. Workpiece Weight | 120 kg | 150 kg |
| Distance Between Centers | 1000 mm | 1600 mm |
| Center Height | 175 mm | 175 mm |
| Max. Number Of Revolutions | - | 3200 /min |
Access detailed specifications, features, and technical drawings for the Favorit. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the Favorit , we’re here to help. Contact us today to find the perfect machining solution for your business.
