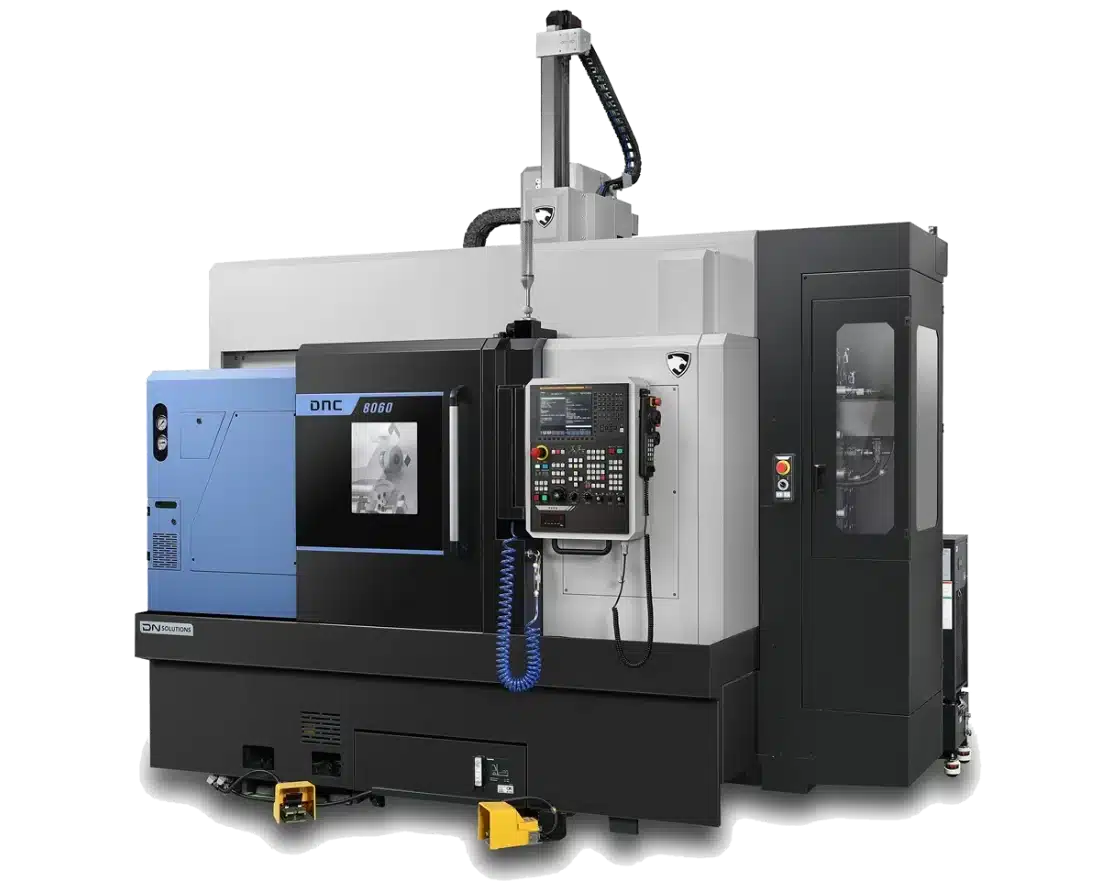

DNC series
The DN Solutions DNC series represents a family of high-precision grinding machines specifically designed for processing quartz and ceramic high-tech components (HTC). These machines are commonly used in the semiconductor, optics, and medical device industries where extremely fine tolerances and surface finishes are critical. Notable features often include advanced CNC control systems, high-speed spindles, and sophisticated vibration dampening for exceptional accuracy and repeatability.
Key Features of the DNC series:
Superior surface finish.
High precision grinding.
Enhanced material removal.
Extended operational lifespan.
Compare the specifications of the different models available in the DNC Series.
| Specifications | DNC 8060 |
|---|---|
| Chuck size | 12 inch |
| Max. Turning Diameter | 810 mm |
| X-Axis Rapid Traverse | 10 m/min |
| Z-Axis Rapid Traverse | 20 m/min |
| X-Axis Travel Distance | 550 mm |
| Z-Axis Travel Distance | 650 mm |
| Length | 2840 mm |
| Height | 2042 mm |
| Width | 2043 mm |
| Weight | 3400 kg |
| Max. Spindle speed | 10000 r/min |
| Tool shank type | BT40 |
| Specifications | DNC 8060 |
|---|---|
| Chuck size | 12 inch |
| Max. Turning Diameter | 810 mm |
| X-Axis Rapid Traverse | 10 m/min |
| Z-Axis Rapid Traverse | 20 m/min |
| X-Axis Travel Distance | 550 mm |
| Z-Axis Travel Distance | 650 mm |
| Length | 2840 mm |
| Height | 2042 mm |
| Width | 2043 mm |
| Weight | 3400 kg |
| Max. Spindle speed | 10000 r/min |
| Tool shank type | BT40 |
Access detailed specifications, features, and technical drawings for the DNC series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the DNC series, we’re here to help. Contact us today to find the perfect machining solution for your business.
