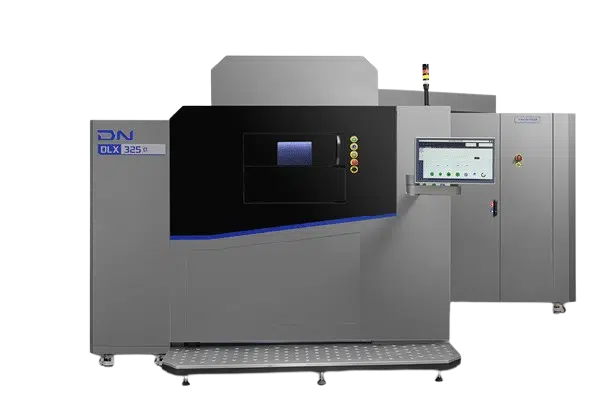

DLX Series
High-performance PBF system with best-in-class working area, exchangeable build containers, and full DNS integration for machining, automation & software — max productivity, seamless workflow.
Key Features of the DLX Series:
End to End Offering
Software Process Chain
Infinite Design Possibilities
Various Materials
Compare the specifications of the different models available in the DLX Series
| Specifications | DLX 325 | DLX 325D | DLX 450 | DLX 450D |
|---|---|---|---|---|
| Length | 177 inch | 177 inch | 181 inch | 181 inch |
| Height | 106 inch | 106 inch | 110 inch | 110 inch |
| Width | 150 inch | 150 inch | 161 inch | 161 inch |
| Weight | 9921 lb | 9921 lb | 12125 lb | 12125 lb |
| Build Size Length | 13 inch | 13 inch | 18 inch | 18 inch |
| Build Size Width | 13 inch | 13 inch | 18 inch | 18 inch |
| Build Size Height | 16 inch | 17 inch | 18 inch | 19 inch |
| Laser Type | Yb - Fiber Laser | Yb - Fiber Laser | Yb - Fiber Laser | Yb - Fiber Laser |
| Number of Laser | 1 | 2 | 1 | 2 |
| Laser Power | 500W/1000W | 500W/1000W | 500W/1000W | 500W/1000W |
| Optical System Type | 3 - axis | 3 - axis | 3 - axis | 3 - axis |
| Optical System Focus Diameter | 80 μM | 80 μM | 80 μM | 80 μM |
| Filtration | Permanent | Permanent | Permanent | Permanent |
| Retentate | Chalk | Chalk | Chalk | Chalk |
| Protective Gas | Argon/Nitrogen | Argon/Nitrogen | Argon/Nitrogen | Argon/Nitrogen |
| Specifications | DLX 325 | DLX 325D | DLX 450 | DLX 450D |
|---|---|---|---|---|
| Length | 177 inch | 177 inch | 181 inch | 181 inch |
| Height | 106 inch | 106 inch | 110 inch | 110 inch |
| Width | 150 inch | 150 inch | 161 inch | 161 inch |
| Weight | 9921 lb | 9921 lb | 12125 lb | 12125 lb |
| Build Size Length | 13 inch | 13 inch | 18 inch | 18 inch |
| Build Size Width | 13 inch | 13 inch | 18 inch | 18 inch |
| Build Size Height | 16 inch | 17 inch | 18 inch | 19 inch |
| Laser Type | Yb - Fiber Laser | Yb - Fiber Laser | Yb - Fiber Laser | Yb - Fiber Laser |
| Number of Laser | 1 | 2 | 1 | 2 |
| Laser Power | 500W/1000W | 500W/1000W | 500W/1000W | 500W/1000W |
| Optical System Type | 3 - axis | 3 - axis | 3 - axis | 3 - axis |
| Optical System Focus Diameter | 80 μM | 80 μM | 80 μM | 80 μM |
| Filtration | Permanent | Permanent | Permanent | Permanent |
| Retentate | Chalk | Chalk | Chalk | Chalk |
| Protective Gas | Argon/Nitrogen | Argon/Nitrogen | Argon/Nitrogen | Argon/Nitrogen |
Access detailed specifications, features, and technical drawings for the DLX Series. Please provide your name and email to receive the brochure(s) via email.
