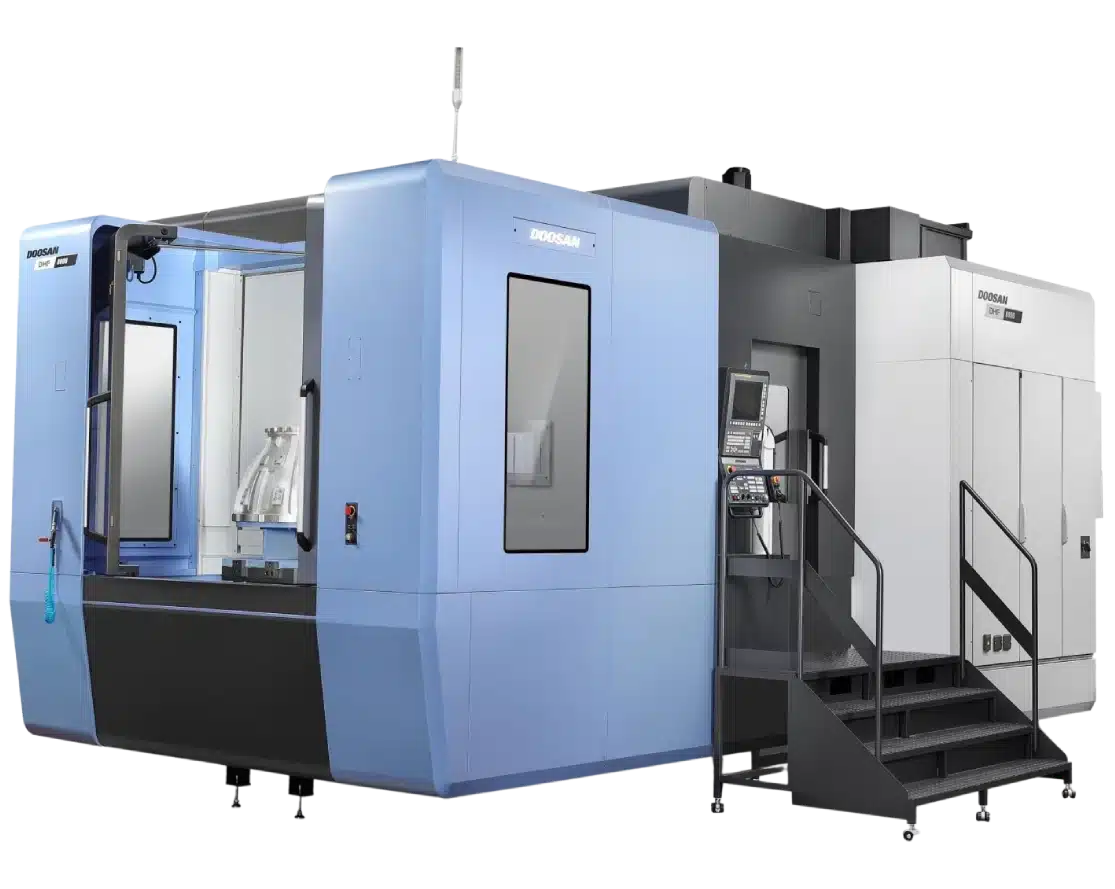

DHF 8000 Series
The DN Solutions DHF 8000 series represents a family of high-performance 5-axis horizontal machining centers (HMCs). These mills are ideally suited for complex part machining in industries such as aerospace, automotive, and energy, excelling in applications requiring high precision and intricate geometries. Notable features often include rigid construction for superior accuracy, high-speed spindles for increased throughput, and advanced control systems for efficient operation.
Key Features of the DHF 8000 Series:
High-speed, precision machining.
Exceptional surface finishes.
5-axis simultaneous machining.
Rigid, robust construction.
Compare the specifications of the different models available in the DHF 8000 Series.
| Specifications | DHF 8000 | DHF 8000ST |
|---|---|---|
| X-Axis Rapid Traverse | 40 m/min | 40 m/min |
| Z-Axis Rapid Traverse | 50 m/min | 50 m/min |
| X-Axis Travel Distance | 1450 mm | 1450 mm |
| Y-Axis Travel Distance | 1200 mm | 1200 mm |
| Z-Axis Travel Distance | 1500 mm | 1500 mm |
| X-Axis Rapid Traverse Feed Rate | 40 m/min | 40 m/min |
| Y-Axis Rapid Traverse Feed Rates | 40 m/min | 40 m/min |
| Z-Axis Rapid Traverse Feed Rates | 50 m/min | 50 m/min |
| Max. Spindle Speed | 6000 r/min | - |
| Max. Spindle Power | 22/35 kW | 35 kW |
| Max. Spindle Torque | 960 N . m | 960 N . m |
| Tool Taper | BT50/CAT580/DIN50/HSK-A100 | HSK-T100 |
| Pallet Size | 800 x 800 mm | - |
| Maximum Workpiece weight | 2000 kg | 2000 kg |
| No. of tool station | 60 ea | 60 ea |
| Length | 11835 mm | 11835 mm |
| Height | 4075 mm | 4075 mm |
| Width | 5830 mm | 5830 mm |
| Weight | 31000 kg | 31000 kg |
| Rotary Table Diameter | - | 1000 mm |
| Specifications | DHF 8000 | DHF 8000ST |
|---|---|---|
| X-Axis Rapid Traverse | 40 m/min | 40 m/min |
| Z-Axis Rapid Traverse | 50 m/min | 50 m/min |
| X-Axis Travel Distance | 1450 mm | 1450 mm |
| Y-Axis Travel Distance | 1200 mm | 1200 mm |
| Z-Axis Travel Distance | 1500 mm | 1500 mm |
| X-Axis Rapid Traverse Feed Rate | 40 m/min | 40 m/min |
| Y-Axis Rapid Traverse Feed Rates | 40 m/min | 40 m/min |
| Z-Axis Rapid Traverse Feed Rates | 50 m/min | 50 m/min |
| Max. Spindle Speed | 6000 r/min | - |
| Max. Spindle Power | 22/35 kW | 35 kW |
| Max. Spindle Torque | 960 N . m | 960 N . m |
| Tool Taper | BT50/CAT580/DIN50/HSK-A100 | HSK-T100 |
| Pallet Size | 800 x 800 mm | - |
| Maximum Workpiece weight | 2000 kg | 2000 kg |
| No. of tool station | 60 ea | 60 ea |
| Length | 11835 mm | 11835 mm |
| Height | 4075 mm | 4075 mm |
| Width | 5830 mm | 5830 mm |
| Weight | 31000 kg | 31000 kg |
| Rotary Table Diameter | - | 1000 mm |
