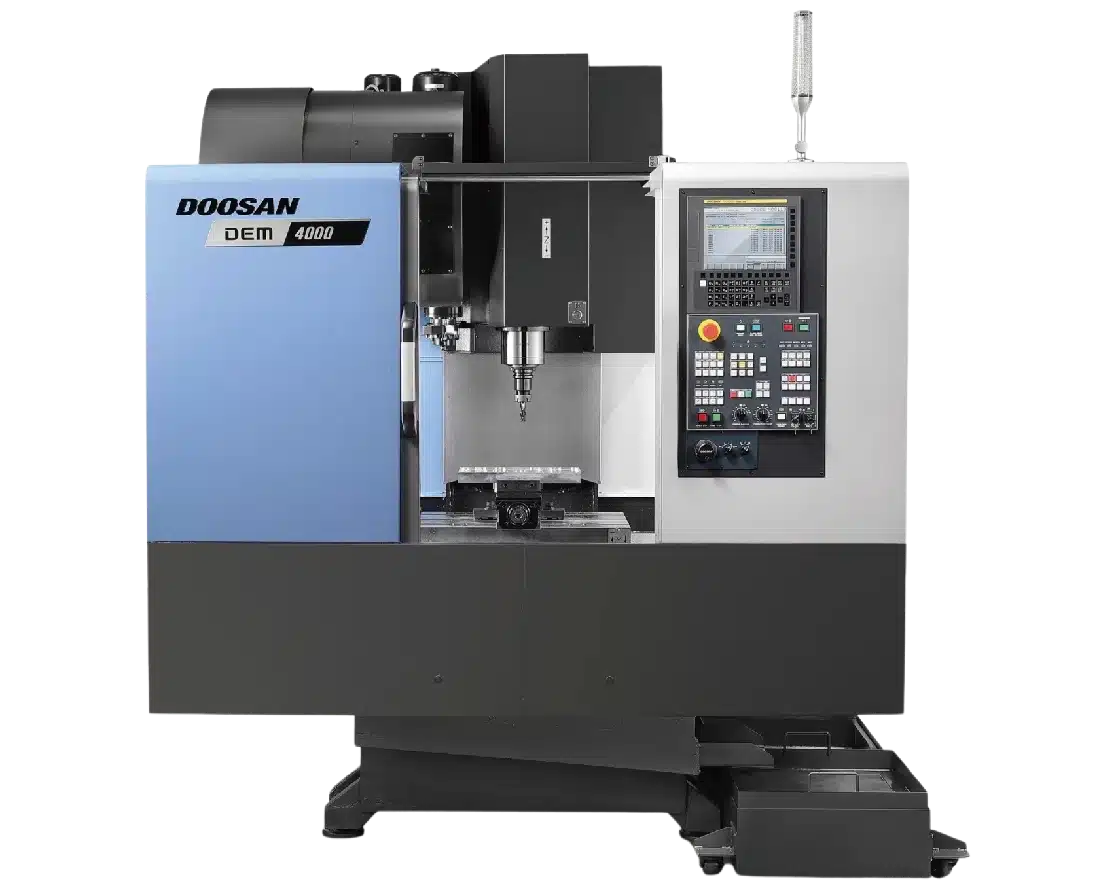

DEM Series
The DN Solutions DEM series comprises high-performance vertical machining centers (VMCs) designed for precision milling operations. These machines are ideally suited for a variety of industries, including automotive, aerospace, and general machining, where complex part geometries and tight tolerances are required. Notable features often include rigid construction for enhanced accuracy, high-speed spindles for increased productivity, and advanced control systems for optimized performance.
Key Features of the DEM Series:
High-speed, precise machining.
Rigid construction, durable design.
Enhanced accuracy, repeatability.
User-friendly operation, simple controls.
Compare the specifications of the different models available in the DEM Series.
| Specifications | DEM 4000 |
|---|---|
| X-Axis Travel Distance | 550 mm |
| Y-Axis Travel Distance | 400 mm |
| Z-Axis Travel Distance | 450 mm |
| X-Axis Rapid Traverse | 24 m/min |
| Y-Axis Rapid Traverse | 24 m/min |
| Z-Axis Rapid Traverse | 24 m/min |
| Max. Spindle Speed | 8000 r/min |
| Max. Spindle Power | 5.5/7.5 kW |
| Max. Spindle Torque | 47.7 N . m |
| Table Length | 650 mm |
| Table Width | 400 mm |
| Maximum Workpiece Weight | 400 kg |
| Length | 1875 mm |
| Height | 2317 mm |
| Width | 2200 mm |
| Weight | 3100 kg |
| Specifications | DEM 4000 |
|---|---|
| X-Axis Travel Distance | 550 mm |
| Y-Axis Travel Distance | 400 mm |
| Z-Axis Travel Distance | 450 mm |
| X-Axis Rapid Traverse | 24 m/min |
| Y-Axis Rapid Traverse | 24 m/min |
| Z-Axis Rapid Traverse | 24 m/min |
| Max. Spindle Speed | 8000 r/min |
| Max. Spindle Power | 5.5/7.5 kW |
| Max. Spindle Torque | 47.7 N . m |
| Table Length | 650 mm |
| Table Width | 400 mm |
| Maximum Workpiece Weight | 400 kg |
| Length | 1875 mm |
| Height | 2317 mm |
| Width | 2200 mm |
| Weight | 3100 kg |
Access detailed specifications, features, and technical drawings for the DEM Series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the DEM Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
