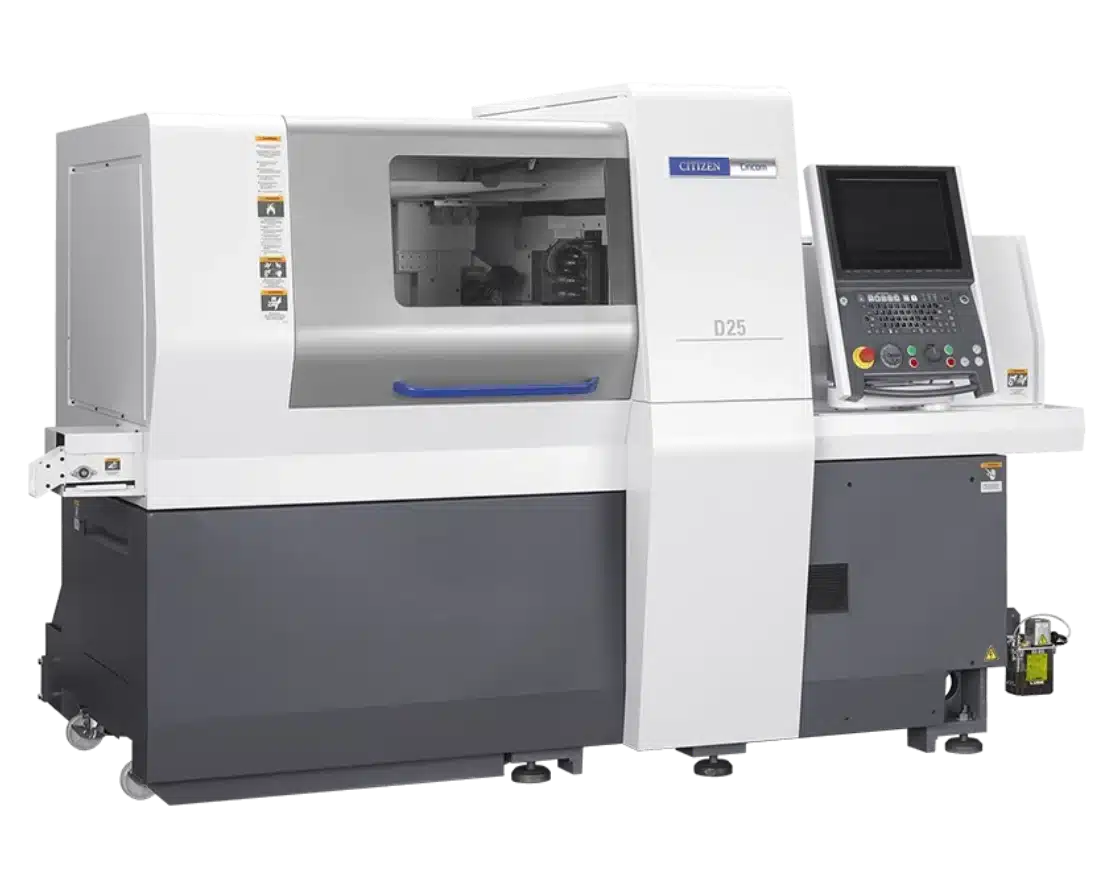

D Series
Citizen Machinery's D Series represents a family of highly precise Swiss-type turning centers featuring sliding headstocks. These machines are ideally suited for high-volume production of complex, small-diameter parts in industries such as medical, electronics, and automotive. Their renowned accuracy and efficiency are achieved through advanced control systems and rigid machine construction.
Key Features of the D Series:
Exceptional precision and accuracy.
High-speed, efficient production.
Compact design, minimal footprint.
Robust, reliable performance.
Compare the specifications of the different models available in the D Series.
| Specifications | D25 |
|---|---|
| Max. machining diameter (D) | 1" dia. |
| Max. machining length (L) With guide bushing | 250 mm |
| Max. machining length (L)Guide bushing less | 2.5 D |
| Spindle speed | Max. 10,000 rpm |
| Spindle speed of the gang rotary tool | Max. 9,000 rpm |
| Max. chuck diameter of back spindle | 1" dia. |
| Max. part length for ejection to standard parts chute | 120 mm |
| Back spindle speed | Max. 10,000 rpm |
| Chuck and Bushing Main and back spindle collet | TF30 |
| Chuck and Bushing Guide Bushing | CD25 |
| Tool size Tool(gang) | 5/8" sq. , 3/4" sq. (cut off) |
| Tool size Sleeve | 1" dia., 3/4" dia. |
| Rapid feed rate X1, X2, Z2 axes | 24 m/ min |
| Rapid feed Others | 32 m/ min |
| Motor for spindle drive | 3.7/ 5.5 kW |
| Motor for rotary tool on the gang tool post | 2.2 kW |
| Motor for back spindle drive | 2.2/ 3.7 kW |
| Motor Back tool post rotary drive | 1.0 kW |
| Rated power consumption | 13.2 kVA |
| Center height | 1,050 mm |
| Weight | 7,606 lbs. |
| Specifications | D25 |
|---|---|
| Max. machining diameter (D) | 1" dia. |
| Max. machining length (L) With guide bushing | 250 mm |
| Max. machining length (L)Guide bushing less | 2.5 D |
| Spindle speed | Max. 10,000 rpm |
| Spindle speed of the gang rotary tool | Max. 9,000 rpm |
| Max. chuck diameter of back spindle | 1" dia. |
| Max. part length for ejection to standard parts chute | 120 mm |
| Back spindle speed | Max. 10,000 rpm |
| Chuck and Bushing Main and back spindle collet | TF30 |
| Chuck and Bushing Guide Bushing | CD25 |
| Tool size Tool(gang) | 5/8" sq. , 3/4" sq. (cut off) |
| Tool size Sleeve | 1" dia., 3/4" dia. |
| Rapid feed rate X1, X2, Z2 axes | 24 m/ min |
| Rapid feed Others | 32 m/ min |
| Motor for spindle drive | 3.7/ 5.5 kW |
| Motor for rotary tool on the gang tool post | 2.2 kW |
| Motor for back spindle drive | 2.2/ 3.7 kW |
| Motor Back tool post rotary drive | 1.0 kW |
| Rated power consumption | 13.2 kVA |
| Center height | 1,050 mm |
| Weight | 7,606 lbs. |
