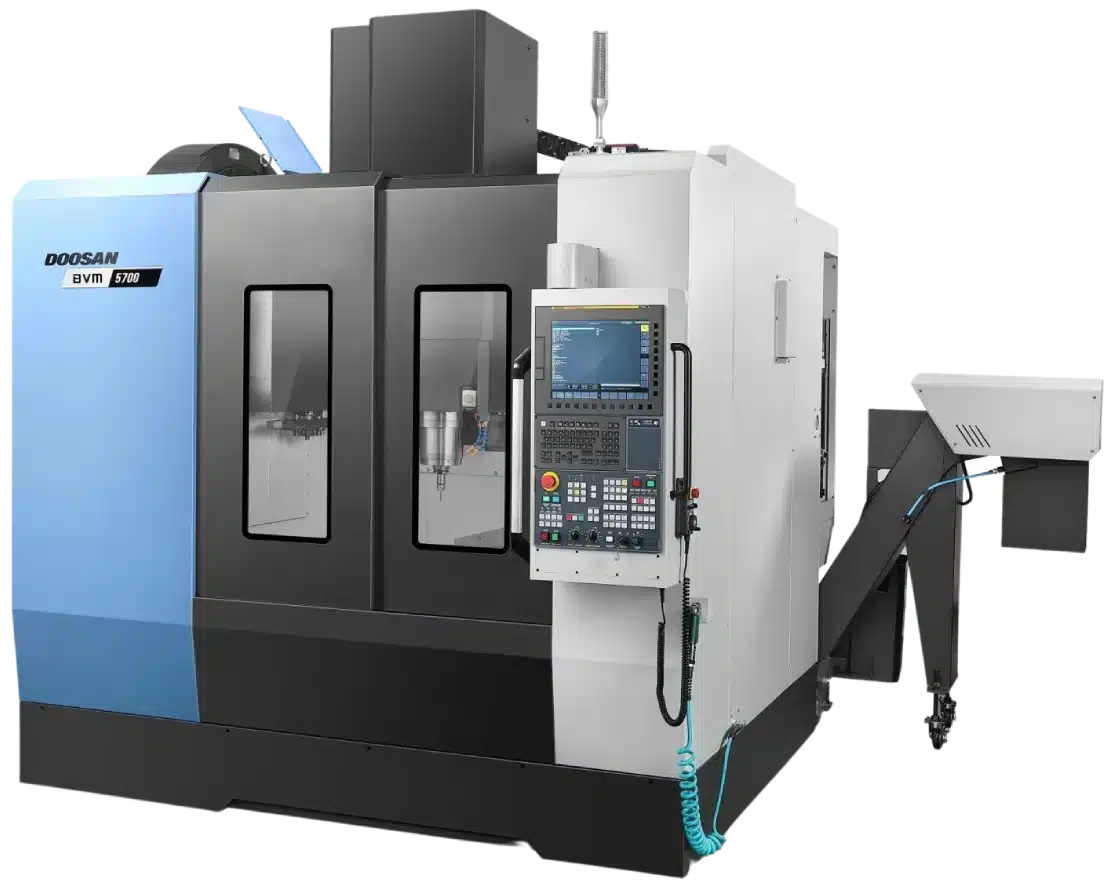

BVM Series
The DN Solutions BVM series comprises high-performance vertical machining centers (VMCs) designed for precise and efficient metal cutting operations. These machines are ideally suited for a wide range of industries, including automotive, aerospace, and general machining, where versatile and accurate milling is required. Notable features often include rigid machine structures, advanced CNC controls, and high-speed spindle capabilities for enhanced productivity and superior surface finishes.
Key Features of the BVM Series:
High-precision machining guaranteed.
Robust construction, long lifespan.
Efficient, versatile operation.
Easy to maintain and use.
Compare the specifications of the different models available in the BVM Series.
| Specifications | BVM 5700 |
|---|---|
| X-Axis Travel Distance | 1050 mm |
| Y-Axis Travel Distance | 570 mm |
| Z-Axis Travel Distance | 460 mm |
| X-Axis Rapid Traverse | 42 m/min |
| Y-Axis Rapid Traverse | 42 m/min |
| Z-Axis Rapid Traverse | 36 m/min |
| Max. Spindle Power | 37 kW |
| Max. Spindle Torque | 214 N . m |
| Tool Taper | ISO #40 |
| Table Length | 1300 mm |
| Table Width | 570 mm |
| Maximum Workpiece Weight | 1000 kg |
| Length | 3080 mm |
| Height | 2890 mm |
| Width | 2560 mm |
| Weight | 7500 kg |
| Specifications | BVM 5700 |
|---|---|
| X-Axis Travel Distance | 1050 mm |
| Y-Axis Travel Distance | 570 mm |
| Z-Axis Travel Distance | 460 mm |
| X-Axis Rapid Traverse | 42 m/min |
| Y-Axis Rapid Traverse | 42 m/min |
| Z-Axis Rapid Traverse | 36 m/min |
| Max. Spindle Power | 37 kW |
| Max. Spindle Torque | 214 N . m |
| Tool Taper | ISO #40 |
| Table Length | 1300 mm |
| Table Width | 570 mm |
| Maximum Workpiece Weight | 1000 kg |
| Length | 3080 mm |
| Height | 2890 mm |
| Width | 2560 mm |
| Weight | 7500 kg |
Access detailed specifications, features, and technical drawings for the BVM Series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the BVM Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
