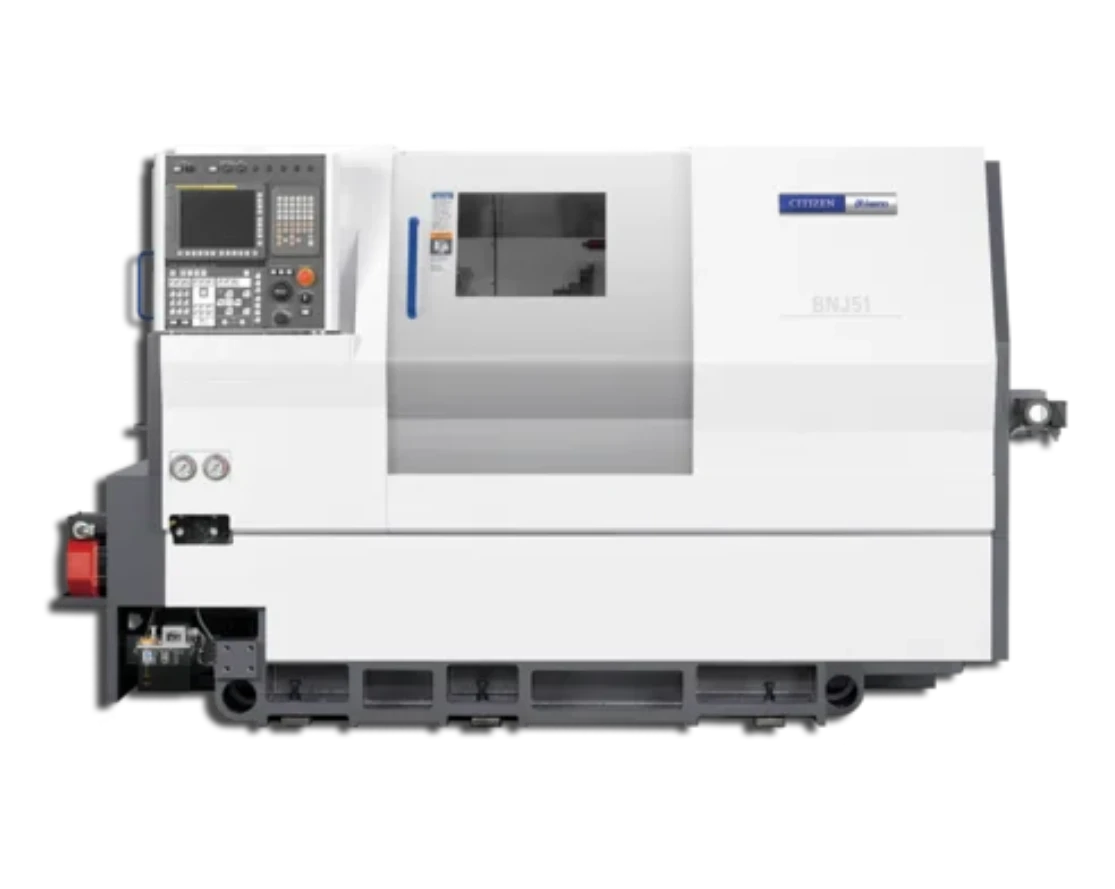

BNJ Series
The Miyano BNJ Series represents a range of high-precision, fixed-headstock turning centers renowned for their rigid construction and exceptional machining capabilities. These machines are ideally suited for high-volume production runs in industries such as automotive, medical, and aerospace, where tight tolerances and repeatability are critical. Notable features often include advanced CNC controls, high-speed spindles, and efficient chip management systems for optimized productivity.
Key Features of the BNJ Series:
High-speed, precise machining.
Exceptional surface finishes.
Rigid, robust construction.
Reliable, long-lasting performance.
Compare the specifications of the different models available in the BNJ Series.
| Specifications | BNJ-51SY6 |
|---|---|
| Diameter of standard cutting: Spindle No. 1 | 51 mm Dia. |
| Diameter of standard cutting: Spindle No. 2 | 42 mm Dia. |
| Spindle speed range: Spindle No. 1 | 5,000 rpm |
| Spindle speed range: Spindle No. 2 | 5,000 rpm |
| Inner diameter of draw tube: Spindle No. 1 | 52 mm Dia. |
| Inner diameter of draw tube: Spindle No. 2 | 43 mm Dia. |
| Collet chuck: Spindle No. 1 | H-S22 |
| Collet chuck: Spindle No. 2 | H-S16, DIN171E |
| Shank height of square turning tool | 3/4" Sq. |
| Diameter of drill shank | 1" Dia. |
| Revolving tools: Number of revolving tool (Turret No. 1) | Max. 12 |
| Revolving tools: Number of revolving tool (Turret No. 2) | Max. 4 |
| Revolving tools: Tool spindle speed range (Turret No. 1) | 6,000 rpm |
| Revolving tools: Tool spindle speed range (Turret No. 2) | 3,000 rpm |
| Power supply: Capacity | 33 KVA |
| Power supply: Air supply | 0.5 MPa |
| Machine height | 1,700 mm |
| Floor space | 2,630 × 1,540 mm (without chip conveyor) |
| Machine weight | 11,687 lbs |
| Specifications | BNJ-51SY6 |
|---|---|
| Diameter of standard cutting: Spindle No. 1 | 51 mm Dia. |
| Diameter of standard cutting: Spindle No. 2 | 42 mm Dia. |
| Spindle speed range: Spindle No. 1 | 5,000 rpm |
| Spindle speed range: Spindle No. 2 | 5,000 rpm |
| Inner diameter of draw tube: Spindle No. 1 | 52 mm Dia. |
| Inner diameter of draw tube: Spindle No. 2 | 43 mm Dia. |
| Collet chuck: Spindle No. 1 | H-S22 |
| Collet chuck: Spindle No. 2 | H-S16, DIN171E |
| Shank height of square turning tool | 3/4" Sq. |
| Diameter of drill shank | 1" Dia. |
| Revolving tools: Number of revolving tool (Turret No. 1) | Max. 12 |
| Revolving tools: Number of revolving tool (Turret No. 2) | Max. 4 |
| Revolving tools: Tool spindle speed range (Turret No. 1) | 6,000 rpm |
| Revolving tools: Tool spindle speed range (Turret No. 2) | 3,000 rpm |
| Power supply: Capacity | 33 KVA |
| Power supply: Air supply | 0.5 MPa |
| Machine height | 1,700 mm |
| Floor space | 2,630 × 1,540 mm (without chip conveyor) |
| Machine weight | 11,687 lbs |
