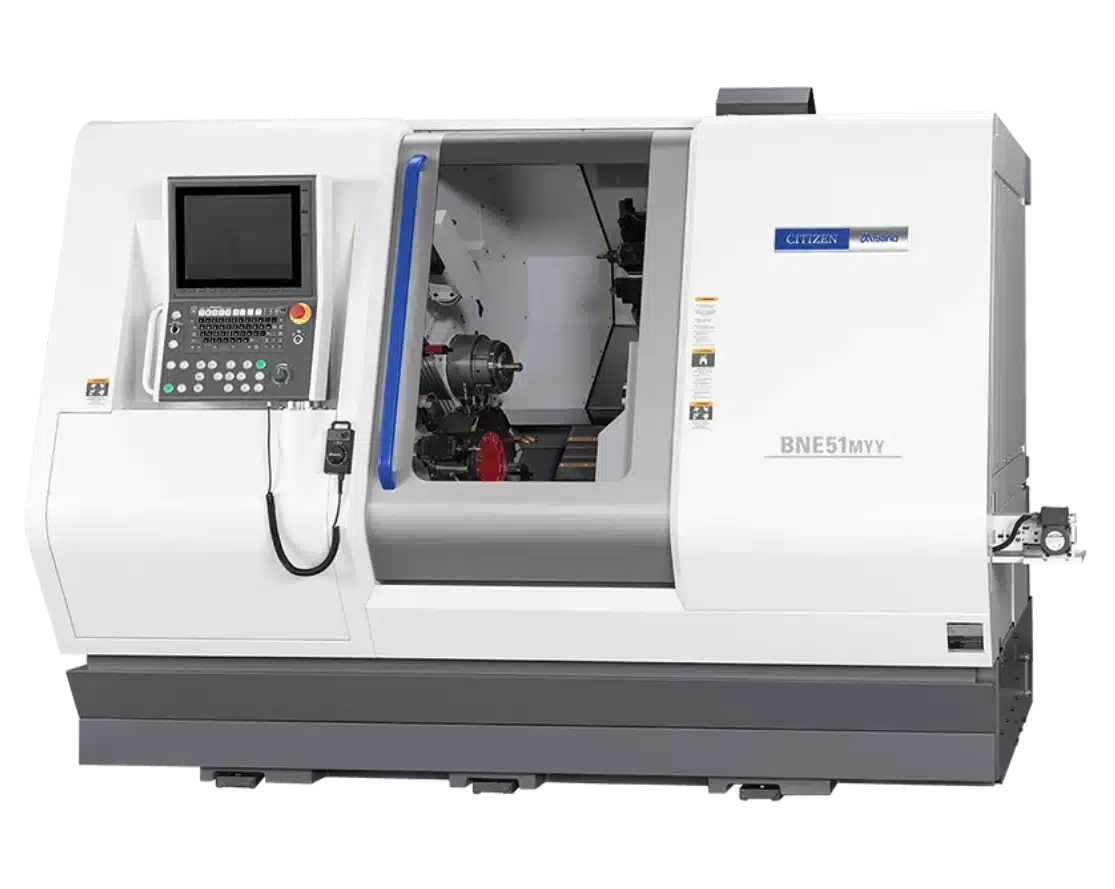

BNE Series
The Miyano BNE Series turning centers are a line of high-precision, fixed-headstock CNC lathes designed for efficient and versatile machining operations. These machines are commonly used in the automotive, aerospace, and medical industries for high-volume production of complex parts requiring exceptional surface finishes. Notable features include rigid machine construction for enhanced accuracy and robust tooling capabilities to handle a wide range of materials and applications.
Key Features of the BNE Series:
High-precision machining guaranteed.
Exceptional surface finishes.
Rigid design, enhanced stability.
Efficient, productive automation.
Compare the specifications of the different models available in the BNE Series.
| Specifications | BNE-51/65MYY | BNE-51MSY |
|---|---|---|
| Number of spindles | 2 | 2 |
| Spindle speed SP1 & SP2 | 5,000 rpm | - |
| Draw tube Diameter SP1 | ∅ 52 / ∅ 66 | - |
| Draw tube Dia. SP2 | ∅ 52 | ∅ 52 |
| Type of collet chuck SP1 & SP2 | Hardinge S22 / Hardinge S26 | - |
| Number of turrets | 2 | 2 |
| Turret stations HD1 & HD2 | 12 ST. | - |
| Spindle motor SP1 | 25 hp (30 min)/20 hp (cont.) | 15/11 kw (15 min./cont) |
| Spindle motor SP2 | 15 hp (30 min)/ 10 hp (cont.) | 7.5/ 5.5 kw (15 min./cont) |
| Rotary tools motor HD1 & HD2 | 5.3 hp | - |
| Power supply | AC 200 ± 10% | - |
| Machine height | 81.5" | 2,050 mm |
| Floor space | 112.6" W x 86.2" D | W 2,725 × D 2,159 mm |
| Machine weight | 17,813 lbs. / 17,924 lbs | 17,640 lbs. |
| Spindle speed SP1 | - | 5,000 rpm |
| Spindle speed SP2 | - | 5,000 rpm |
| Draw tube Dia. SP1 | - | ∅ 52 |
| Power chuck size and type SP1 | - | 6" ( ∅ 69) |
| Power chuck size and type SP2 | - | 6" ( ∅ 69) |
| Turret stations HD1 | - | 12 ST. |
| Turret stations HD2 | - | 12 ST. |
| Tool spindle speed range | - | Max. 6,000 rpm |
| Turret index motor | - | 0.7 kw |
| Voltage | - | AC 200/ 220 V |
| Specifications | BNE-51/65MYY | BNE-51MSY |
|---|---|---|
| Number of spindles | 2 | 2 |
| Spindle speed SP1 & SP2 | 5,000 rpm | - |
| Draw tube Diameter SP1 | ∅ 52 / ∅ 66 | - |
| Draw tube Dia. SP2 | ∅ 52 | ∅ 52 |
| Type of collet chuck SP1 & SP2 | Hardinge S22 / Hardinge S26 | - |
| Number of turrets | 2 | 2 |
| Turret stations HD1 & HD2 | 12 ST. | - |
| Spindle motor SP1 | 25 hp (30 min)/20 hp (cont.) | 15/11 kw (15 min./cont) |
| Spindle motor SP2 | 15 hp (30 min)/ 10 hp (cont.) | 7.5/ 5.5 kw (15 min./cont) |
| Rotary tools motor HD1 & HD2 | 5.3 hp | - |
| Power supply | AC 200 ± 10% | - |
| Machine height | 81.5" | 2,050 mm |
| Floor space | 112.6" W x 86.2" D | W 2,725 × D 2,159 mm |
| Machine weight | 17,813 lbs. / 17,924 lbs | 17,640 lbs. |
| Spindle speed SP1 | - | 5,000 rpm |
| Spindle speed SP2 | - | 5,000 rpm |
| Draw tube Dia. SP1 | - | ∅ 52 |
| Power chuck size and type SP1 | - | 6" ( ∅ 69) |
| Power chuck size and type SP2 | - | 6" ( ∅ 69) |
| Turret stations HD1 | - | 12 ST. |
| Turret stations HD2 | - | 12 ST. |
| Tool spindle speed range | - | Max. 6,000 rpm |
| Turret index motor | - | 0.7 kw |
| Voltage | - | AC 200/ 220 V |
