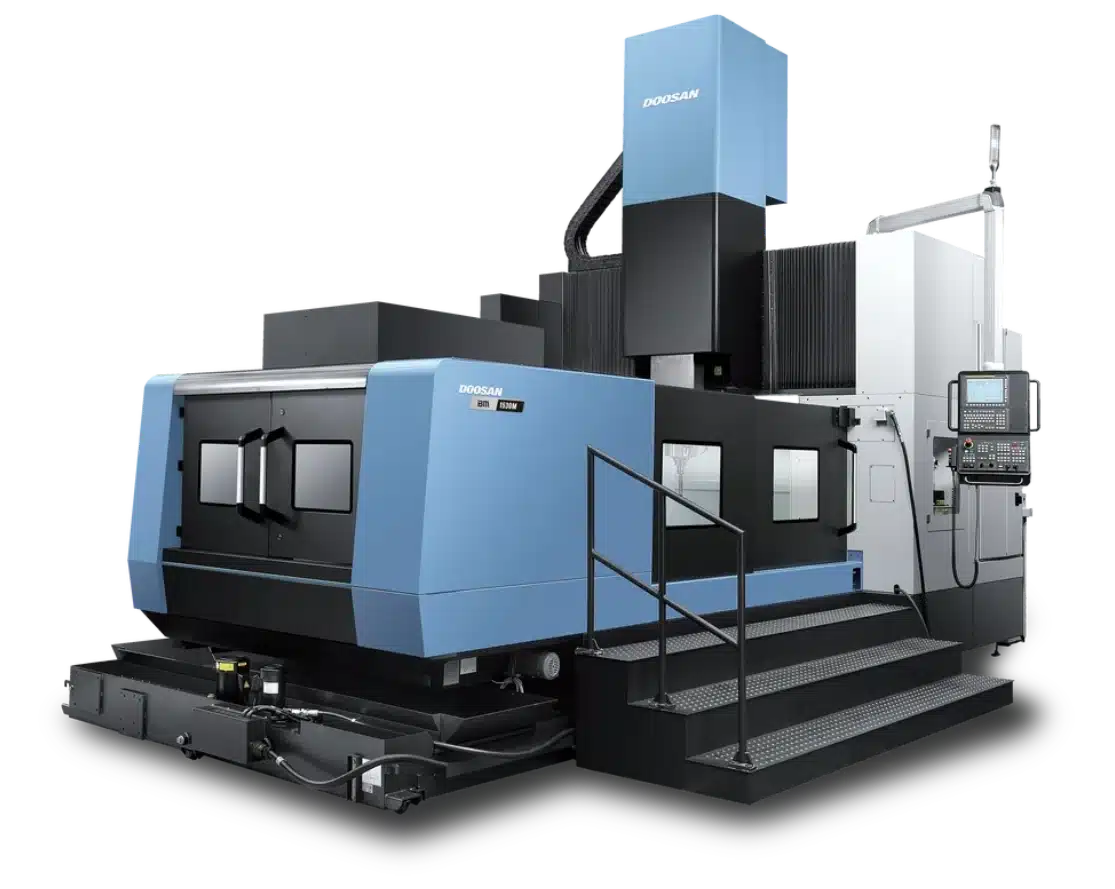

BM Series
The DN Solutions BM series represents a robust line of double-column machining centers, offering exceptional rigidity and accuracy for heavy-duty milling operations. These fixed-cross-rail machines are ideally suited for applications demanding high precision and substantial metal removal, such as aerospace, energy, and large-scale construction industries. Notable features include their heavy-duty construction, high-speed spindle capabilities, and advanced CNC control systems for efficient and precise machining of large workpieces.
Key Features of the BM Series:
High-accuracy machining.
Heavy-duty construction.
Rigid double-column design.
Exceptional surface finishes.
Compare the specifications of the different models available in the BM Series.
| Specifications | BM 1530M | BM 2035M | BM 2740 | BM 2740M |
|---|---|---|---|---|
| Table to spindle nose | 1000 mm | 1000 mm | 950 mm | 950 mm |
| X-Axis Travel Distance | 3000 mm | 3500 mm | 4000 mm | 4000 mm |
| Y-Axis Travel Distance | 1550 mm | 2050 mm | 2700 mm | 2700 mm |
| Z-Axis Travel Distance | 800 mm | 800 mm | 800 mm | 800 mm |
| X-Axis Rapid Traverse | 16 m/min | 16 m/min | 16 m/min | 12 m/min |
| Y-Axis Rapid Traverse | 16 m/min | 16 m/min | 24 m/min | 16 m/min |
| Z-Axis Rapid Traverse | 16 m/min | 16 m/min | 24 m/min | 16 m/min |
| Max. Spindle Speed | 12000 r/min | 12000 r/min | 10000 r/min | 12000 r/min |
| Max. Spindle Power | 30 kW | 30 kW | 30 kW | 30 kW |
| Max. Spindle Torque | 420.42 N . m | 420.42 N . m | 420.42 N . m | 420.42 N . m |
| Tool Taper | ISO#50 | ISO#50 | ISO#50 | ISO#50 |
| Table Length | 3000 mm | 3500 mm | 4000 mm | 4000 mm |
| Table Width | 1350 mm | 1850 mm | 2500 mm | 2500 mm |
| Maximum Workpiece weight | 8000 kg | 10000 kg | 10000 kg | 15000 kg |
| Length | 4450 mm | 4960 mm | 5535 mm | 5535 mm |
| Height | 4770 mm | 4770 mm | 4436 mm | 4675 mm |
| Width | 8690 mm | 9540 mm | 10825 mm | 10825 mm |
| Weight | 29000 kg | 35516 kg | 45000 kg | 48000 kg |
| Specifications | BM 1530M | BM 2035M | BM 2740 | BM 2740M |
|---|---|---|---|---|
| Table to spindle nose | 1000 mm | 1000 mm | 950 mm | 950 mm |
| X-Axis Travel Distance | 3000 mm | 3500 mm | 4000 mm | 4000 mm |
| Y-Axis Travel Distance | 1550 mm | 2050 mm | 2700 mm | 2700 mm |
| Z-Axis Travel Distance | 800 mm | 800 mm | 800 mm | 800 mm |
| X-Axis Rapid Traverse | 16 m/min | 16 m/min | 16 m/min | 12 m/min |
| Y-Axis Rapid Traverse | 16 m/min | 16 m/min | 24 m/min | 16 m/min |
| Z-Axis Rapid Traverse | 16 m/min | 16 m/min | 24 m/min | 16 m/min |
| Max. Spindle Speed | 12000 r/min | 12000 r/min | 10000 r/min | 12000 r/min |
| Max. Spindle Power | 30 kW | 30 kW | 30 kW | 30 kW |
| Max. Spindle Torque | 420.42 N . m | 420.42 N . m | 420.42 N . m | 420.42 N . m |
| Tool Taper | ISO#50 | ISO#50 | ISO#50 | ISO#50 |
| Table Length | 3000 mm | 3500 mm | 4000 mm | 4000 mm |
| Table Width | 1350 mm | 1850 mm | 2500 mm | 2500 mm |
| Maximum Workpiece weight | 8000 kg | 10000 kg | 10000 kg | 15000 kg |
| Length | 4450 mm | 4960 mm | 5535 mm | 5535 mm |
| Height | 4770 mm | 4770 mm | 4436 mm | 4675 mm |
| Width | 8690 mm | 9540 mm | 10825 mm | 10825 mm |
| Weight | 29000 kg | 35516 kg | 45000 kg | 48000 kg |
