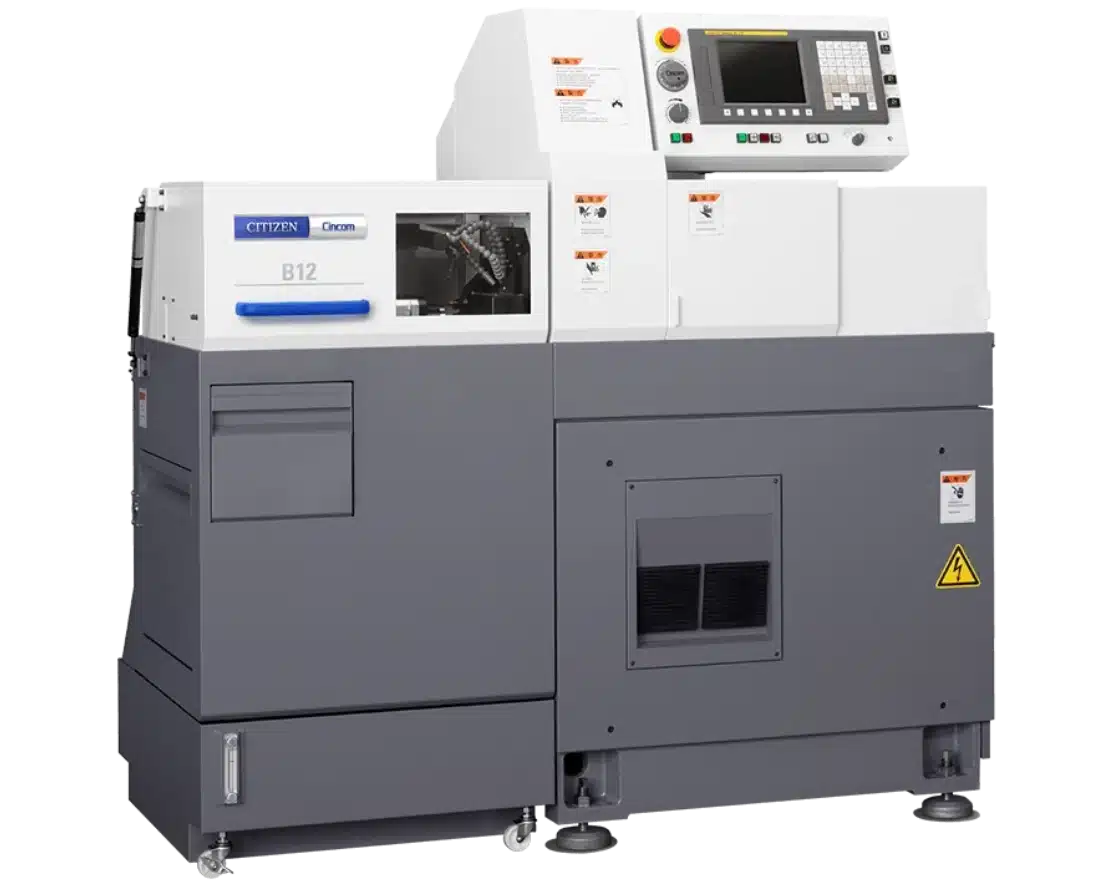

B Series
Citizen's B Series Swiss-type turning centers are high-precision, high-speed machines ideal for producing complex parts with intricate geometries. These machines are commonly used in the medical, aerospace, and automotive industries for manufacturing small, intricate components requiring superior surface finishes. Their rigid construction and advanced control systems ensure exceptional accuracy and repeatability, leading to increased productivity and reduced production costs.
Key Features of the B Series:
Exceptional precision and accuracy.
High-speed, efficient production.
Compact design, minimal footprint.
Robust, reliable performance.
Compare the specifications of the different models available in the B Series.
| Specifications | B12 |
|---|---|
| Max. machining diameter | .47" |
| Max. machining length (per chucking) | 5.31" |
| Main spindle motor | 1.5/2.2 KW |
| Main spindle speed | 100-12,000 rpm |
| Back spindle speed | 100-7,000 rpm |
| Number of Tools: Cutting | 5 |
| Number of Tools: Rotary | 3 |
| Number of Tools: Front Drilling | 4 |
| Number of Tools: Back Drilling | 4 |
| Specifications | B12 |
|---|---|
| Max. machining diameter | .47" |
| Max. machining length (per chucking) | 5.31" |
| Main spindle motor | 1.5/2.2 KW |
| Main spindle speed | 100-12,000 rpm |
| Back spindle speed | 100-7,000 rpm |
| Number of Tools: Cutting | 5 |
| Number of Tools: Rotary | 3 |
| Number of Tools: Front Drilling | 4 |
| Number of Tools: Back Drilling | 4 |
Access detailed specifications, features, and technical drawings for the B Series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the B Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
