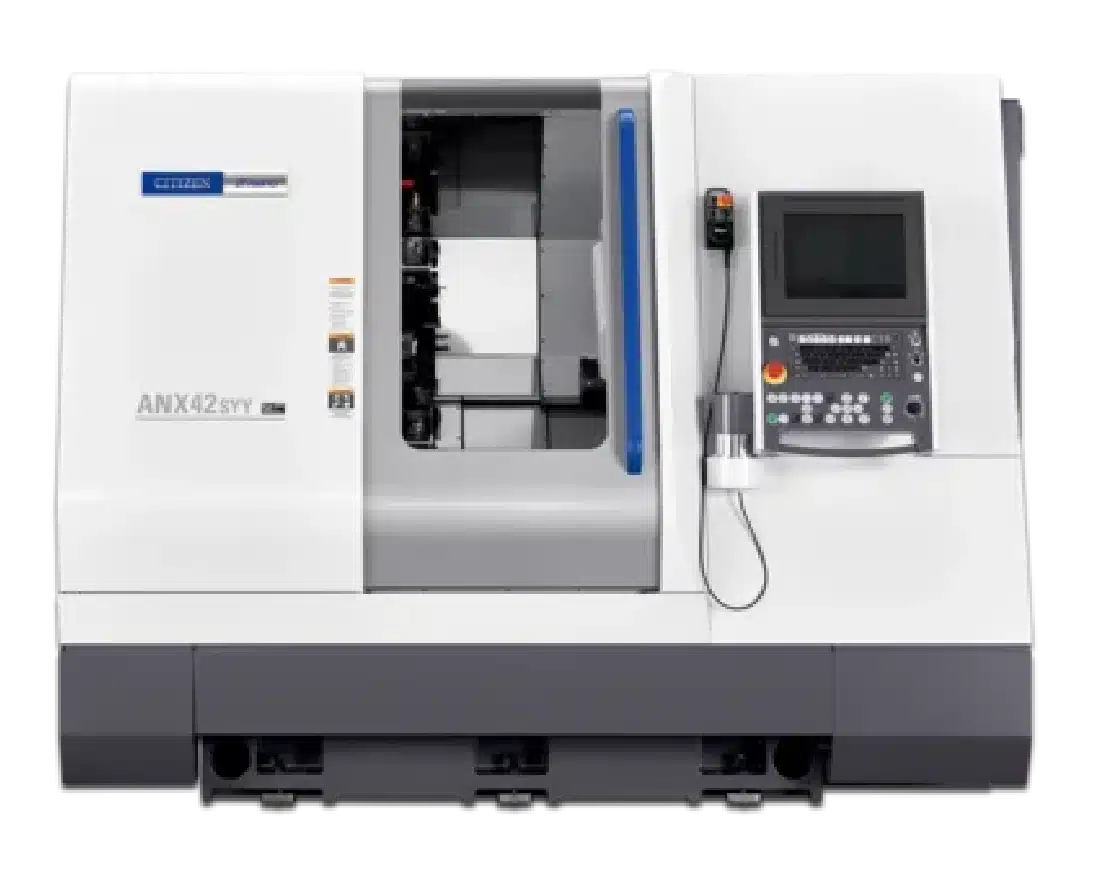

ANX Series
The Miyano ANX Series turning centers are a range of fixed-headstock CNC lathes designed for high-precision machining. These machines are ideally suited for high-volume production in industries such as automotive, medical, and aerospace, where tight tolerances and repeatability are critical. Their rigid construction and advanced control systems ensure exceptional surface finish and accuracy, maximizing efficiency and minimizing production downtime.
Key Features of the ANX Series:
High-speed, high-precision turning.
Rigid design, exceptional accuracy.
Enhanced automation capabilities.
Robust, reliable performance.
Compare the specifications of the different models available in the ANX Series.
| Specifications | ANX-42SY |
|---|---|
| Maximum Machining Dia Bar Work | 1-5/8" |
| Standard Parts Catcher Length | 5.12" |
| Main Spindle Speed | 6,000 rpm |
| Back Spindle Max. Collet Dia (Spindle ID = 2.047”) | 1-5/8" |
| Back Spindle Speed | 6,000 rpm |
| Revolving Tool Spindle Speed | 6,000 rpm |
| Rapid Traverse Rate: X1, Z1, X2, Z2, X3 axis | 18m/min |
| Rapid Traverse Rate: Y1, Y2 axis | 18m/min |
| Rapid Traverse Rate: Z3 axis | 30m/min |
| Motors: Main Spindle | 15 hp / 10 hp |
| Motors: Back Spindle | 15 hp / 10 hp |
| Motors: Revolving Tool | 3 hp |
| Number of Mountable Tools: Turret Stations | 12+12 |
| Number of Mountable Tools: Turning/Drilling | 24 |
| Number of Mountable Tools: Revolving Tool Stations | 24 |
| Tooling Size: Turning Tools | 3/4" Shank |
| Tooling Size: ID Sleeves | 1" Dia. |
| Collets: Main Spindle Collet | DIN173E (B42) |
| Collets: Back Spindle Collet | DIN173E (B42) |
| Machine Weight | 13,779 lbs |
| Specifications | ANX-42SY |
|---|---|
| Maximum Machining Dia Bar Work | 1-5/8" |
| Standard Parts Catcher Length | 5.12" |
| Main Spindle Speed | 6,000 rpm |
| Back Spindle Max. Collet Dia (Spindle ID = 2.047”) | 1-5/8" |
| Back Spindle Speed | 6,000 rpm |
| Revolving Tool Spindle Speed | 6,000 rpm |
| Rapid Traverse Rate: X1, Z1, X2, Z2, X3 axis | 18m/min |
| Rapid Traverse Rate: Y1, Y2 axis | 18m/min |
| Rapid Traverse Rate: Z3 axis | 30m/min |
| Motors: Main Spindle | 15 hp / 10 hp |
| Motors: Back Spindle | 15 hp / 10 hp |
| Motors: Revolving Tool | 3 hp |
| Number of Mountable Tools: Turret Stations | 12+12 |
| Number of Mountable Tools: Turning/Drilling | 24 |
| Number of Mountable Tools: Revolving Tool Stations | 24 |
| Tooling Size: Turning Tools | 3/4" Shank |
| Tooling Size: ID Sleeves | 1" Dia. |
| Collets: Main Spindle Collet | DIN173E (B42) |
| Collets: Back Spindle Collet | DIN173E (B42) |
| Machine Weight | 13,779 lbs |
