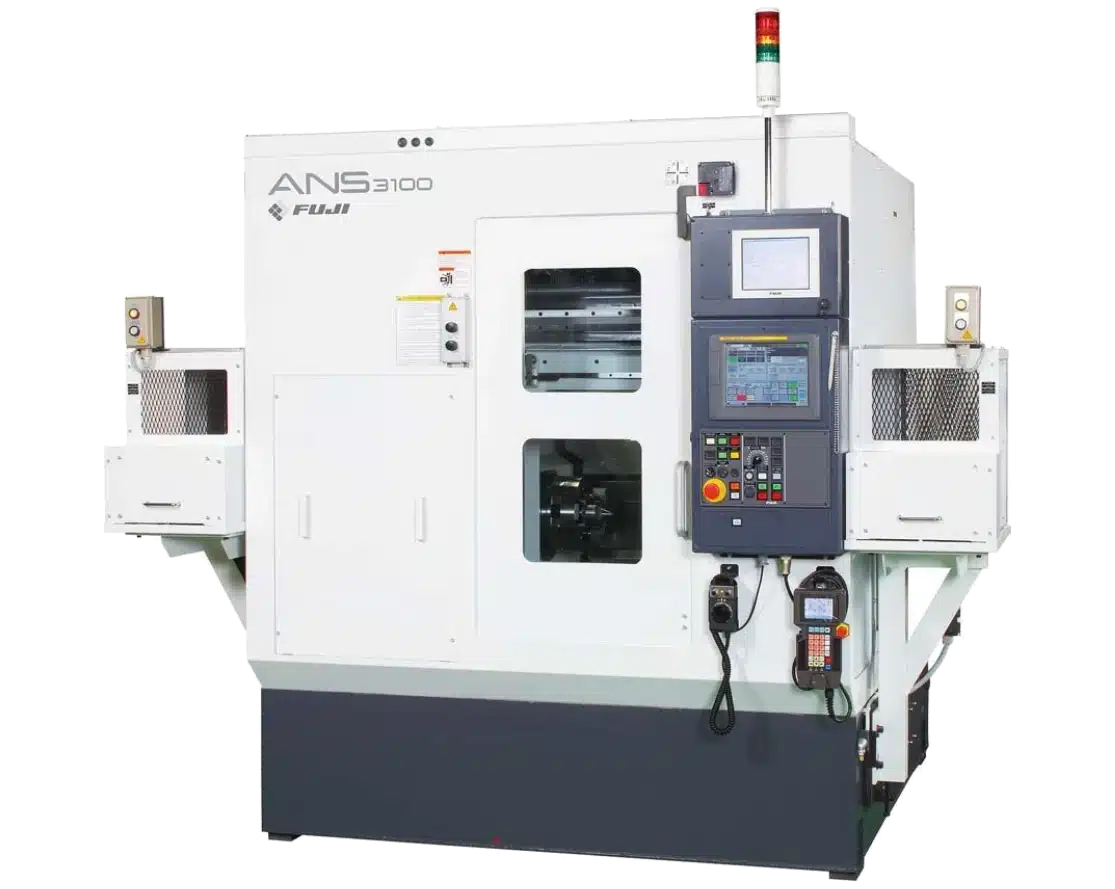

ANS Series
The Fuji ANS Series represents a family of high-performance horizontal turning centers featuring dual-spindle configurations. These machines are ideally suited for high-volume production runs in industries such as automotive, aerospace, and general machining, excelling in applications requiring rapid cycle times and precise part replication. Their rigid construction and advanced CNC control systems ensure superior accuracy and surface finish, maximizing efficiency and minimizing production downtime.
Key Features of the ANS Series:
High-speed, precise machining.
Dual spindles for efficiency.
Robust, reliable construction.
Reduced cycle times.
Compare the specifications of the different models available in the ANS Series.
| Specifications | ANS-3100 | ANS-3100 P | ANS-4000 | ANS-4200 |
|---|---|---|---|---|
| Recommended Work Size | 200 x 90mm | - | - | - |
| Spindle Diameter - mm (inch) | 100 (3.94) | 100 (3.94) | 120 (4.72) | 120 (4.72) |
| Spindle Nose | A2-6 | - | - | - |
| Spindle Speed - rpm | 4000 | 35-3500 | ~3000 | ~3000 |
| Spindle Motor - kW (hp) | 11/15 (15/20) | 11/15 (15/20) | 18.5/22 (25/30) | 18.5/22 (25/30) |
| Slide stroke: X-axis - mm (inch) | 220 (8.66) | 220 (8.66) | 265 (10.43) | 265 (10.43) |
| Slide stroke: Z-axis - mm (inch) | 380 (14.96) | 465 (18.3) | 440 (17.32) | 710 (27.56) |
| Turret | 8-position | 8-position | 12-position | 12-position |
| Carrying capacity - kg (lbs) | 5+5 (11+11) | 5+5 (11+11) | 10 + 10 (22 + 22) | 10 + 10 (22 + 22) |
| FUJI Robot | L292-H | L292-H | L290 | L291 |
| Specifications | ANS-3100 | ANS-3100 P | ANS-4000 | ANS-4200 |
|---|---|---|---|---|
| Recommended Work Size | 200 x 90mm | - | - | - |
| Spindle Diameter - mm (inch) | 100 (3.94) | 100 (3.94) | 120 (4.72) | 120 (4.72) |
| Spindle Nose | A2-6 | - | - | - |
| Spindle Speed - rpm | 4000 | 35-3500 | ~3000 | ~3000 |
| Spindle Motor - kW (hp) | 11/15 (15/20) | 11/15 (15/20) | 18.5/22 (25/30) | 18.5/22 (25/30) |
| Slide stroke: X-axis - mm (inch) | 220 (8.66) | 220 (8.66) | 265 (10.43) | 265 (10.43) |
| Slide stroke: Z-axis - mm (inch) | 380 (14.96) | 465 (18.3) | 440 (17.32) | 710 (27.56) |
| Turret | 8-position | 8-position | 12-position | 12-position |
| Carrying capacity - kg (lbs) | 5+5 (11+11) | 5+5 (11+11) | 10 + 10 (22 + 22) | 10 + 10 (22 + 22) |
| FUJI Robot | L292-H | L292-H | L290 | L291 |
