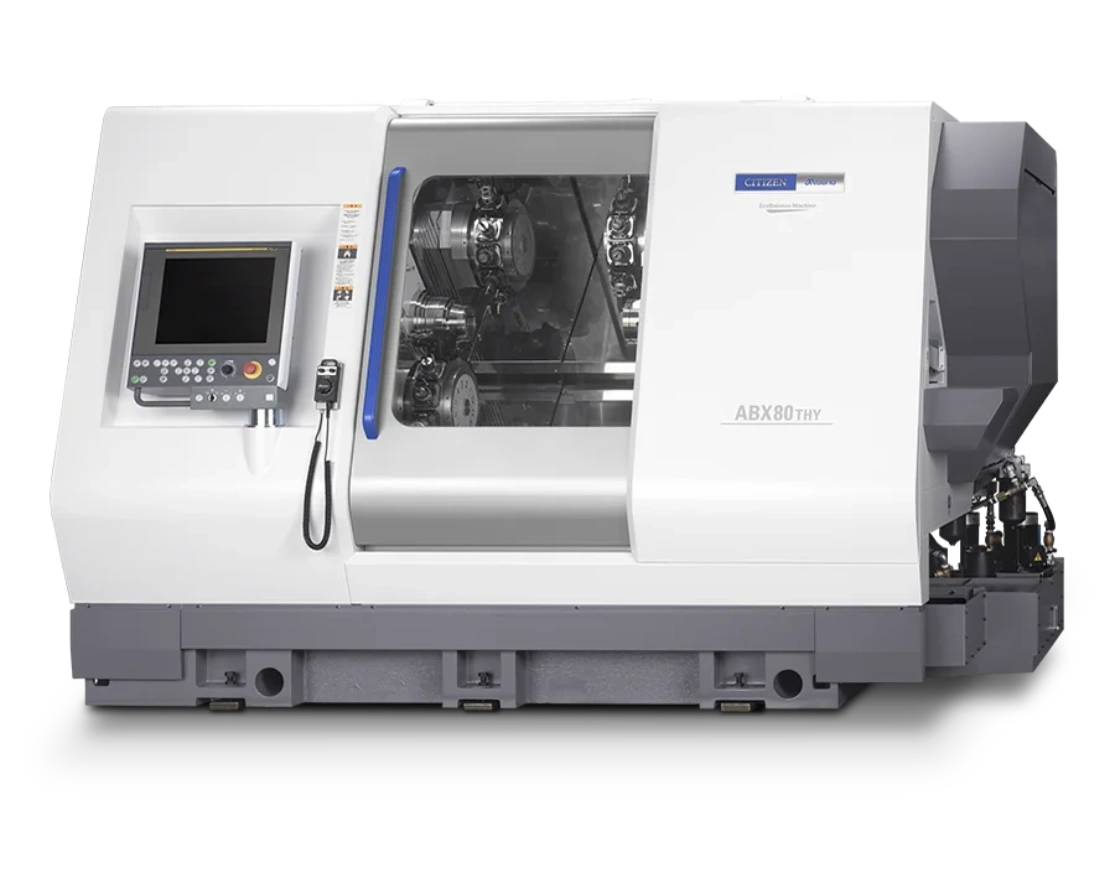

ABX Series
The Miyano (Citizen) ABX Series represents a range of high-precision fixed-headstock turning centers designed for efficient and versatile machining. These machines are ideally suited for high-volume production runs in industries such as automotive, medical, and electronics, excelling in the production of small to medium-sized parts. Notable features often include rigid machine structures, advanced CNC controls, and automated functions for improved productivity and reduced cycle times.
Key Features of the ABX Series:
High-speed, precise machining.
Rigid construction, superior accuracy.
Enhanced productivity, reduced downtime.
User-friendly operation, easy maintenance.
Compare the specifications of the different models available in the ABX Series.
| Specifications | ABX-51/64 |
|---|---|
| Spindle speed SP1 | 50-5,000 min-1 / 40-4,000 min-1 |
| Spindle speed SP2 | 50-5,000 min-1 / 50-5,000 min-1 |
| Inner diameter of draw tube SP1 | 52 mm Dia. / 65.5 mm Dia. |
| Inner diameter of draw tube SP2 | ∅52 mm / ∅52 mm |
| Type of collet chuck SP1 S collet system | H-S22 / DIN177E - H-S26 / DIN185E |
| Type of collet chuck SP2 S collet system | H-S22 / DIN177E - H-S22 / DIN177E |
| Tool shank size HD1, HD2, HD3 | 20 mm Sq. |
| Machining capacity Drilling | MAX. 20 Dia. |
| Revolving tool (Option) - Number of revolving tools HD1, HD2, HD3 | 12 (MAX.36) |
| Maximum spindle speed | 6,000 min-1 |
| Specifications | ABX-51/64 |
|---|---|
| Spindle speed SP1 | 50-5,000 min-1 / 40-4,000 min-1 |
| Spindle speed SP2 | 50-5,000 min-1 / 50-5,000 min-1 |
| Inner diameter of draw tube SP1 | 52 mm Dia. / 65.5 mm Dia. |
| Inner diameter of draw tube SP2 | ∅52 mm / ∅52 mm |
| Type of collet chuck SP1 S collet system | H-S22 / DIN177E - H-S26 / DIN185E |
| Type of collet chuck SP2 S collet system | H-S22 / DIN177E - H-S22 / DIN177E |
| Tool shank size HD1, HD2, HD3 | 20 mm Sq. |
| Machining capacity Drilling | MAX. 20 Dia. |
| Revolving tool (Option) - Number of revolving tools HD1, HD2, HD3 | 12 (MAX.36) |
| Maximum spindle speed | 6,000 min-1 |
Access detailed specifications, features, and technical drawings for the ABX Series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the ABX Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
