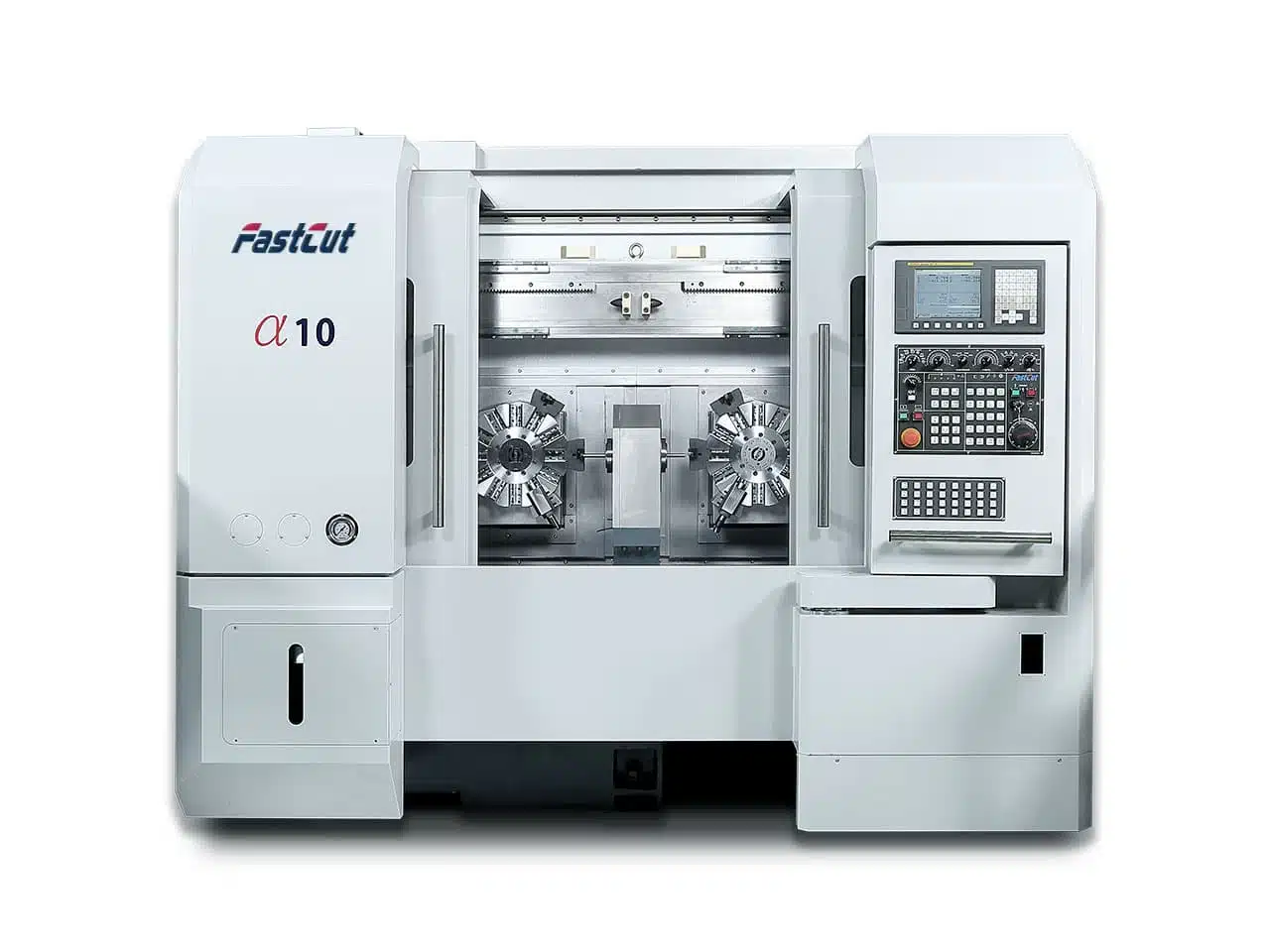

A Series
Perfectly fit for tube and shaft with ID turning application. Little interference with the spindle makes it suitable for ID machining. Chips directly fall into the conveyor, chip accumulated free. A10 equipped with two front turrets can reduce interference while processing. It is also user friendly for tool changing and alignment. It has special designed machine bed which makes the chip removal easier and causes the production line more stable in massive production with automation.
Compare the specifications of the different models available in the A Series.
| Specifications | A10 |
|---|---|
| Max Spindle Bore | Φ250 |
| Spindle Motor | 20KW/30KW*/40KW* |
| Turret | 12 Station Servo Turret |
| Tool Holder | OD:25mmX25mm ID:40mm |
| Machine Control | Fanuc |
| Recommended Option | Automated Part Loader / Power Turret / 70Bar High Pressure Pump Units. |
| Machine Weight | 5000 kg. |
| Specifications | A10 |
|---|---|
| Max Spindle Bore | Φ250 |
| Spindle Motor | 20KW/30KW*/40KW* |
| Turret | 12 Station Servo Turret |
| Tool Holder | OD:25mmX25mm ID:40mm |
| Machine Control | Fanuc |
| Recommended Option | Automated Part Loader / Power Turret / 70Bar High Pressure Pump Units. |
| Machine Weight | 5000 kg. |
Access detailed specifications, features, and technical drawings for the A Series. Please provide your name and email to receive the brochure(s) via email.
Our team of CNC experts is ready to assist you. Whether you need a detailed quote, want to discuss your specific manufacturing challenges, or require more information on the A Series, we’re here to help. Contact us today to find the perfect machining solution for your business.
